Huepar LR5RG - Laser Detector/Line Laser Receiver
-
HUEPAR DEDICATED RECEIVER - Huepar LR-5RG receiver can ONLY be used with Huepar Line Laser Levels that have Pulse Mode Function‼ Please note the the receiver can NOT be used with Rotary Laser Level‼ And the receiver can NOT be used with Huepar 9011G&9211G laser level‼ It is recommended to use the laser level detector in accompany with Huepar 901CG/902CG, BOX-1G/R, 8211G, 621CG/R, 622CG/R, 602CG/R, 603CG/R, GF360G/R, etc.
-
AVAILABLE FOR RED AND GREEN PULSE LASER - It is NECESSARY to Turn ON the Pulse Mode of the Laser Level when using with Huepar LR-5RG laser receiver‼ The laser level detector/ receiver allows detection of Red and Green pulse laser beams in difficult light conditions, distances up to 200 feet.
-
Large Reception Window & Dual LCD Display - Large reception window of 2 inches and optical and acoustic signals help to locate the laser plane quickly and accurately. Dual LCD displays for easy visual readout on both sides of the receiver. LCD backlight provides a clear look even in low light conditions. Adjust the height until the horizontal datum line and the arrow disappear on the LCD display.
-
PRECISE OPTICAL AND ACOUSTIC SIGNALS - This laser level detector/laser receiver features a user-friendly interface and is smart in its simple design. Optical and acoustic signals help to locate the laser plane quickly and accurately. The LED indicator provides a clear and accurate signal. Beep sounds will remind you when you find the target.
-
LONG BATTERY LIFE AND CLAMP HOLDER - The laser level receiver comes with 2 x AA battery, providing you with about 20 working hours. There is also an automatic shut-off feature that power down the device after about 10 minutes of being idle to extend battery life. The attached heavy-duty clamp makes it easy to mount the detector to a rod or other target point.
!! Please note NOT compatible with Rotary Laser Level!!!!!!!!
!! Please be aware that this laser level detector is compatible with pulse induction laser levels only!!!!!!!!
!! This laser receiver can NOT be used for Huepar 9011G/9211G/FL360R/FL360G/8300G!!!!!!!!
!! If you are not sure whether it suits for your laser tool, please confirm with us before you place an order!!!!!!!!
Laser Class: Class 2 (IEC/EN60825-1/2014) <1mW power output.
Huepar LR-5RG Laser Detector Specifications:
- Pulse duration: 50 μs ; PWM: 5:5
- Frequency: 10KHz (Matched PWM and frequency, Line lasers can work with LR-5RG Laser Receiver)
- Display: Dual LCD Display
- Leveling Accuracy (High): ≤2mm(1/13in)
- Leveling Accuracy (Low): ≤3mm(1/9in)
- Working Distance: 130ft~200ft (typical) depend on light source
- Operating Time: 20 hours; Auto Power Off (with No Signal Detected): 10min
- Power Source: 2*AA Batteries (Alkaline)
- Dimension (LxWxH): 140mm×68mm×26mm; Weight: 140g
Using Tips
● Put the laser level in Pulse (Outdoor) Mode!!!!!!!!!!!
● Made sure your laser level could used in accompanied with Huepar Receiver!!!!!!!!!!!
● Made sure the laser level and the Receiver windows were clean.
● Recheck the batteries in both devices (Laser level & Huepar Laser Receiver).
● Recommended for using with Huepar 902CG, 901CG, 8211G, BOX-1G/R, GF360G/R, 622CG/R, 621CG/R, 603CG/R, 602CG/R, B03CG, B02CG, B21CG, 503CG, 503DG Laser Level.
● Can NOT be used with Huepar 9011G & 9211G laser level!!!!!!!!!
LCD Icons
Move the Detector as the Direction Shown:
● Datum Lower than Laser Beam – Move Up
● Datum Higher than Laser Beam – Move Down
● When Datum in Line with Laser Beam – The Direction becomes a Line
Buzzer Remind
A beeping tone signals that the laser beam has been detected:
● A slower beeping tone signals – Move Up
● A fast beeping tone signals – Move Down
Can toggle through the volume, or turn on Mute.
Humanized Function
It boasts a dual-sided LCD display, backlight and battery status. Can toggle through the volume and accuracy. While the accuracy mode allows you to switch between HIGH and LOW.
Built-in Bubble and Holder
LR-5RG Laser Detector comes complete with a compatible rod mounting bracket.
A built-in bubble level provides an extra measure of leveling accuracy.
High Quality
Robust and built tough to last, the laser detector is durably constructed with a hard plastic housing and rubber casing for long-term use, as well as protection against wet weather conditions when working outdoors.
Package Includes:
- 1*Huepar LR-5RG Digital Laser Detector
- 1*Heavy-duty clamp
- 2*AA batteries
All official website orders will automatically receive a free 2-year membership warranty.
We insist on providing customers with high-quality products and promise to provide customers with 24-month worry-free after-sales service.
The time frame of an order delivery is divided into two parts:
- Processing time: 1-2 working days
- Shipping time: 2-5 working days
We offer free shipping on orders of £99 or more. If your order does not qualify for free shipping, the shipping fee will be shown on the address-filing page once the order is settled.
We accept the following forms of payment:
1. Credit Card (Visa, MasterCard, American Express, Discover)
2. Debit Card (Visa, MasterCard, Discover)
3. Paypal
4. Paypal Credit
5. Apple Pay
6. Google Pay
7. Shop Pay
8. Affirm Financing (excluding West Virginia and Iowa)
9. Bank Transfer
PREMIUM SERVICE, SUPERIOR QUALITY
24/7 Premium service team
Equipped with factory-trained experts, Huepar's consumer service team strives to find the right solution for your needs – from advice to sales and repair & maintenance services.
You can enjoy efficient support from Huepar- we promise to respond in 24hrs and solve the problem in 48hrs.
Lifetime Customer Support
All Huepar products come with lifetime customer support - no worries about exceeding the service period.
All product defects, such as accuracy malfunction, battery and charger damage and requests for replacement parts will be dealt with on time, every time.
Note: Please contact our customer care using online chat service at https://huepar.com/support or email“support@huepar.com”if there is any problem with your payment.
Which is the Best for You?
Product SKU |
LR-5RG
|
LR-6RG
|
|---|---|---|
Product Weight |
0.385 kg
|
0.47 kg
|
PWM & Frequency |
|
|
Laser Reception Window Size |
|
|
Horizontal Bubble |
|
|
Display |
|
|
Accuracy Adjustment |
|
|
Volume Adjustment |
|
|
Clamp Holder |
|
|
Durable ABS Housing Edge |
|
|
Auto Power OFF |
|
|
Operating Time & Power Source |
|
|
Adapted Laser Levels |
|
|
Can NOT be used with |
|
|
Let’s Answer Your Questions
What is the Huepar LR5RG / LR6RG?
The LR5RG / LR6RG is a laser detector that is compatible with most Huepar laser levels on Pulse Mode. It detects lasers that are either red or green from up to 200 feet away.
It uses optical and acoustic signals to tell the user when it is in line with the laser.
How is the LR5RG different than the LR6RG?
Battery life is one crucial difference that distinguishes the LR6RG.
The LR6RG comes with a 9V battery which gives the device 70 hours of battery life, and it also comes with an automatic shut-off feature that powers down the device after eight minutes of inactivity to save battery.
By comparison, the LR5RG comes with the, admittedly easier to purchase, AA batteries which give the device only 20 hours of battery life, and the shut-down features come after ten minutes of inactivity.
So, if you do not want to be constantly running to the battery store, the LR6RG has an obvious advantage.
The LR5RG is more lightweight, weighing in at just 140g, compared to the LR6RG which is three times as heavy at 420g.
Both laser detectors work with laser levels such as Huepar 602Cg or 902CG!
How is the LR5RG like the LR6RG?
Both products feature a simple interface that is very user-friendly.
They generate acoustic and optical signals that help the user to locate the laser accurately and very quickly. Both receivers utilize an LED indicator and loud beeping sounds to help you find the target.
Both devices share a heavy-duty clamp which makes it easy to attach to a rod or to another target point.
Who should get the LR5RG / LR6RG?
LR5RG:
The LR5RG is the product with shorter battery life, so I would recommend you buy this product if you are only going to need to use it occasionally.
While the short battery life is not a concern, provided you have AA batteries in the house somewhere for your TV remote or your torch, you should be able to replace them easily, and this is not necessarily the case for a 9V battery, which is difficult to procure.
LR6RG:
The LR6RG, just like the one above is a laser level detector that works with most Huepar laser levels with Pulse Mode.
It detects lasers that are either green or red from up to 200 feet away. It uses optical and acoustic signals to tell the user when it is in line with the laser.
After years of technical accumulation and research, Huepar has once again broken through technology and has successfully developed the 4D laser level, which will help you if you are already good enough at building technology but still want to work more efficiently. It can help you 38% improvement in measurement accuracy, 25% improvement in measurement distance, 30% improvement in clarity, and a larger battery capacity, and up to 8 hours of working time for more work situations.
Using a 4D laser level will make your work easier and faster than if you only used a traditional level. You'll also be able to work more accurately thanks to its 360-degree rotation feature, which provides exceptional ease of use. And since it's wireless, all you have to do is plug it in and walk away from it - you don't have to worry about wires or cables getting in your way! You don't need electrical equipment, either. You also don't need an electrical outlet nearby when working with the 4D laser level. Because of its durability and portability (it weighs about 3 pounds), you'll be able to transport it easily between different job sites.
What Laser Level does LR5RG / LR6RG support?
BOX-1G/BOX-1R/B03CG/B02CG/B21CG
S02CG/S03CG/S03CG-L/S03DG/S03DG-L/S04CG/S04CG-L
P02CG/P03CG/P03DG/P04CG
503CG/503DG
621CG/6211CG/621CR/622CG/622CR/603CG/603CR/602CG/602CR
7211CG/703CG/704CG
8211G
901CG/902CG/904DG
LS03CG/LS03DG/LS04CG
L141G/LS41G/L011G
GF360G/GF360R
NT411G
R03CG
E011G
DT03CG
HM03CG
Which models cannot be supported?
LR5RG not support:9011G/9211G
LR6RG not support:8300G/9011G/9211G/FL360R/FL360G/B011G/B011R/FC011G/FC011R
Does Huepar Laser need to be set up?
It is Necessary to turn ON the Pulse Mode of the Laser Level when using with the Receiver.
Choosing Huepar Receiver
The Huepar laser level receiver is a device that allows you to listen to the beams of light emitted by construction lasers in order to know exactly where your line will be on any given surface, making it easier and more accurate than trying to set up your lines by hand.
Using Huepar receiver to pick up the laser lines generated by construction lasers on the field, shop now! A laser level receiver can be used in many ways, but here are just some of the best ways they can be used on the job site.
Still have questions? Get help from a Huepar Support.
Customer Reviews
You Might Also Like
Huepar S04CG - 4D 16 Lines Osram Self-Leveling LCD Screen Laser Level
Huepar 603CG - 3D Green Beam Self-Leveling 3 X 360° Laser Level

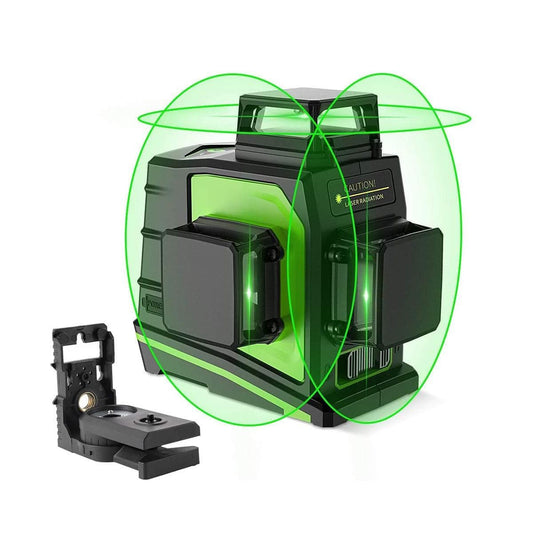

Huepar GF360G - 3D Green Beam Self-Leveling Laser Level with Magnetic Pivoting Base
Huepar 903CG - 3x360 ° Self-Leveling 12 Lines 3D Cross Line Laser Level
Huepar 904DG - 4x360° Green Cross Line Floor Laser Tool with Remote Control & magnetic Bracket
Huepar B03CG Pro - 3 x 360° Green Beam Cross Line Self-leveling Laser Level with Hard Carry Case
Huepar 621CG - Self-Leveling Green Laser Level Cross Line with 2 Plumb Dots Laser Tool
Huepar 503DG - 3x360 Green Beam Self-leveling Cross Line with Hard Carry Case
WARNING:
Do not point the laser beam directly into the eyes.
The device is a laser class 2 laser product according to IEC / EN60825-1 / 2014. It is allowed to use the device without any further safety precautions.
The eye protection is usually secured by aversion reactions and blink reflex.
Huepar Laser Level has undergone laboratory benchmark testing to ensure that the working temperature range of the product is: -10℃ ~ 50℃ / 14℉ ~ 122℉; the recommended temperature for product storage is: -20℃ ~ 70℃ / -4℉ ~ 158℉.
