Overview

8000mAh Rechargeable Li-ion Battery

The Huepar ZK04CG is equipped with an 8000mAh rechargeable Li-ion battery, providing up to 8 hours of operation with all 4 x 360° green laser beams active. It features a Type-C charging port, allowing you to charge the battery via a car charger, power bank, or other sources. Battery indicators keep you informed of the power status at all times. Additionally, the removable Li-ion battery includes a micro-USB port, which can be used as a power bank to charge other devices, such as a laser distance meter or other laser levels and tools.

Self-leveling Mode & Manual Mode

  • Self-Leveling Mode: When the pendulum is unlocked, the tool enters self-leveling mode. The laser beam flashes rapidly and the tool beeps if it is out of the 3° self-leveling range.
  • Manual Mode: When the pendulum is locked, the tool can be used at any angle. The laser beam will flash every 3-5 seconds to indicate that it is not in self-leveling mode.

Laser Line Control & Remote Function

Short press the "H" and "V" buttons on the keypad to switch the horizontal and vertical laser lines separately. The remote control allows you to select each of the 4 x 360° laser lines individually from a distance of up to 32.8 feet. You can also temporarily turn off the laser lines using the remote control if you need to step away for a while.

Pulse Mode

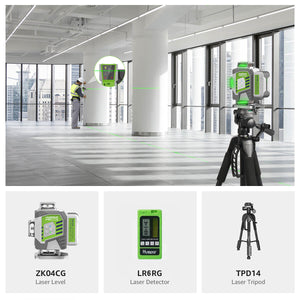

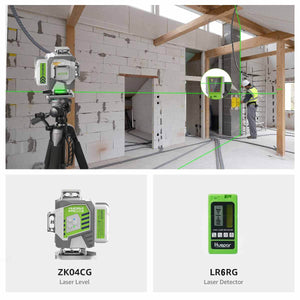

You can use the remote control to turn the pulse mode on or off without having to walk around frequently. The visible distance of the laser is 100 feet (100 LUX). Pulse mode extends the working distance to 200 feet when used with a Huepar laser detector LR-6RG, LR-5RG, or LR-8RG. This mode is designed for use in bright light or outdoor conditions to help locate the laser line and must be used in conjunction with a laser detector.

Multi-Functional Magnetic Bracket

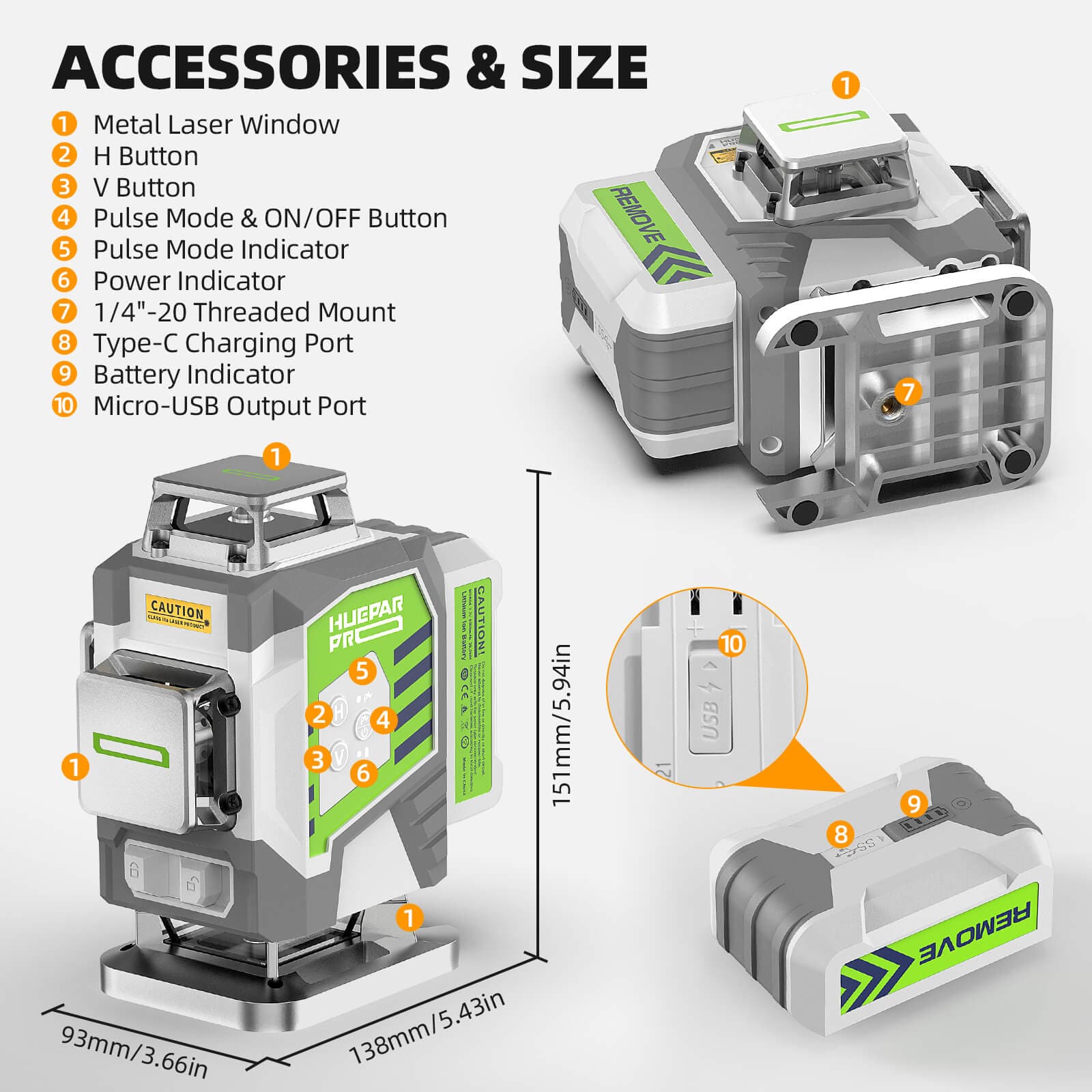

The strong magnetic bracket quickly attaches to metal surfaces, allowing the Huepar ZK04CG to be mounted for wall and ceiling use. Fine-tuning knobs adjust the laser line vertically, horizontally, and rotationally up to 360°. The adjustable back clip fits objects up to 1.97 inches (5 cm) thick and is compatible with most magnetic bases for enhanced stability. The included laser window adapter positions the tool closer to the wall, ideal for ceiling applications. The bracket features 1/4"-20 and 5/8"-11 threaded mounts for tripods or pole mounts, and the laser tool also has a 1/4"-20 mount thread.

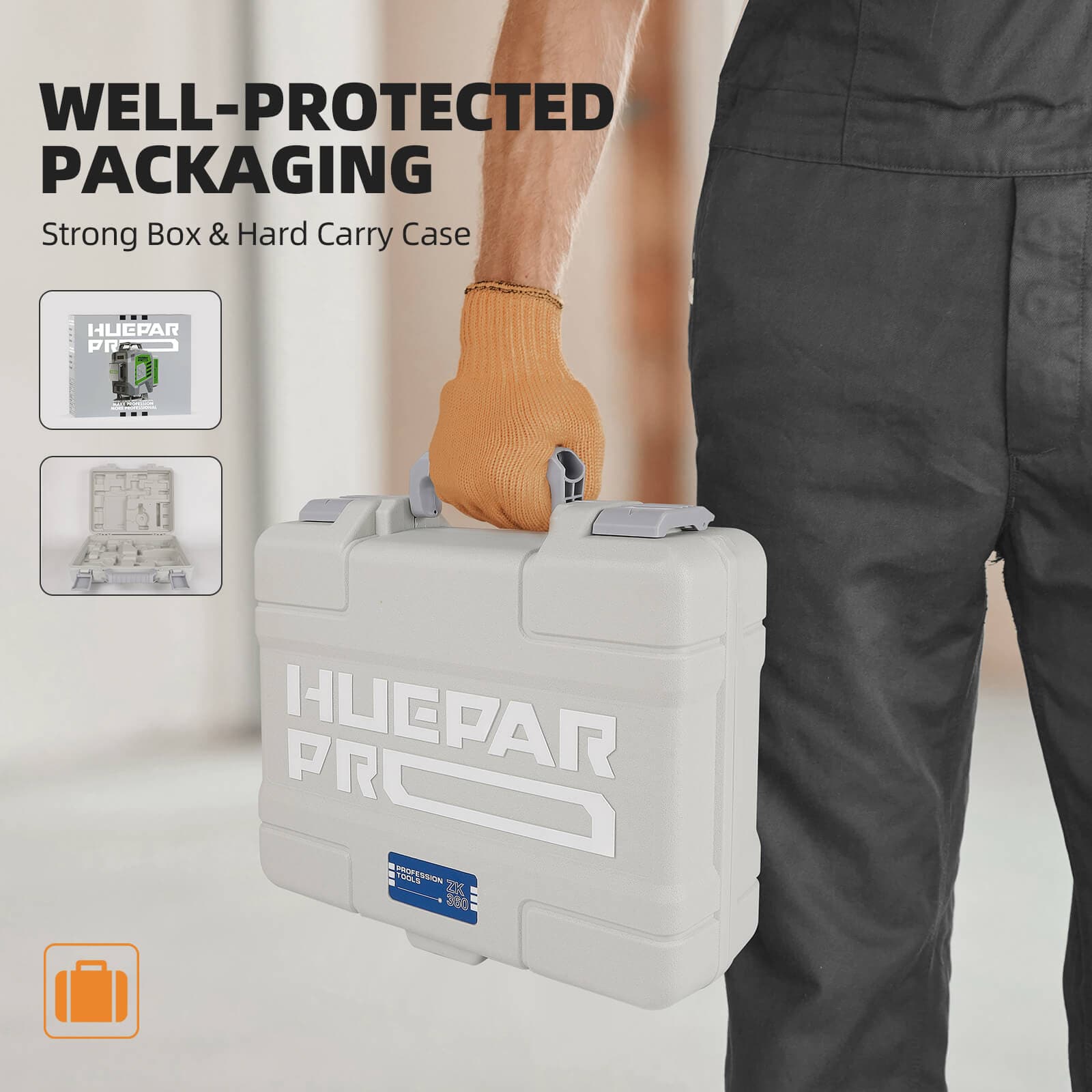

Hard Carrying Case

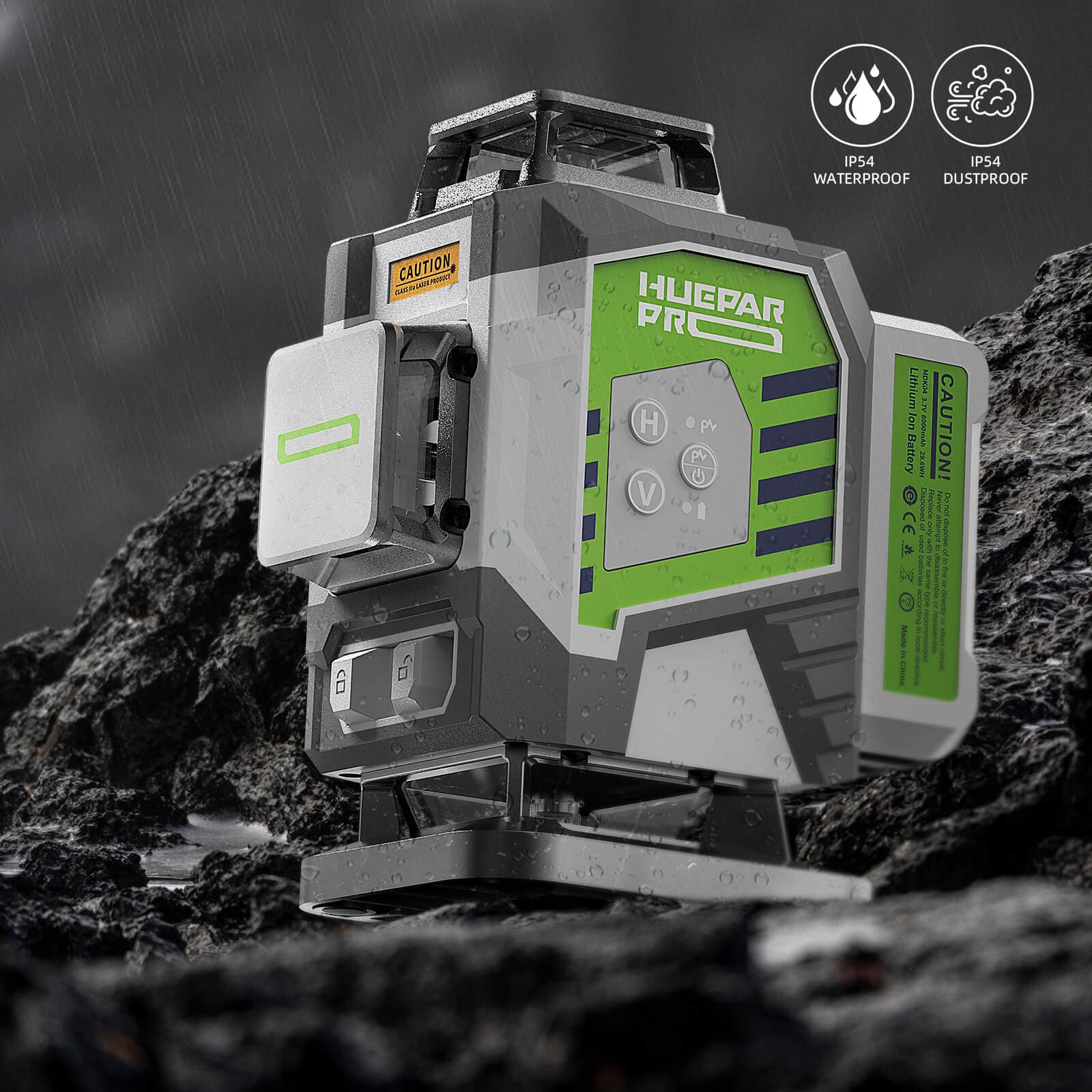

The Huepar ZK04CG features a rugged, high-quality shockproof enclosure that protects against impacts from up to 4 feet, making it highly durable in tough conditions. Its compact size and lightweight design ensure it’s easy to hold and maneuver, while its stable base keeps it securely in place. This makes it well-suited for demanding construction site environments, where both durability and practicality are essential.

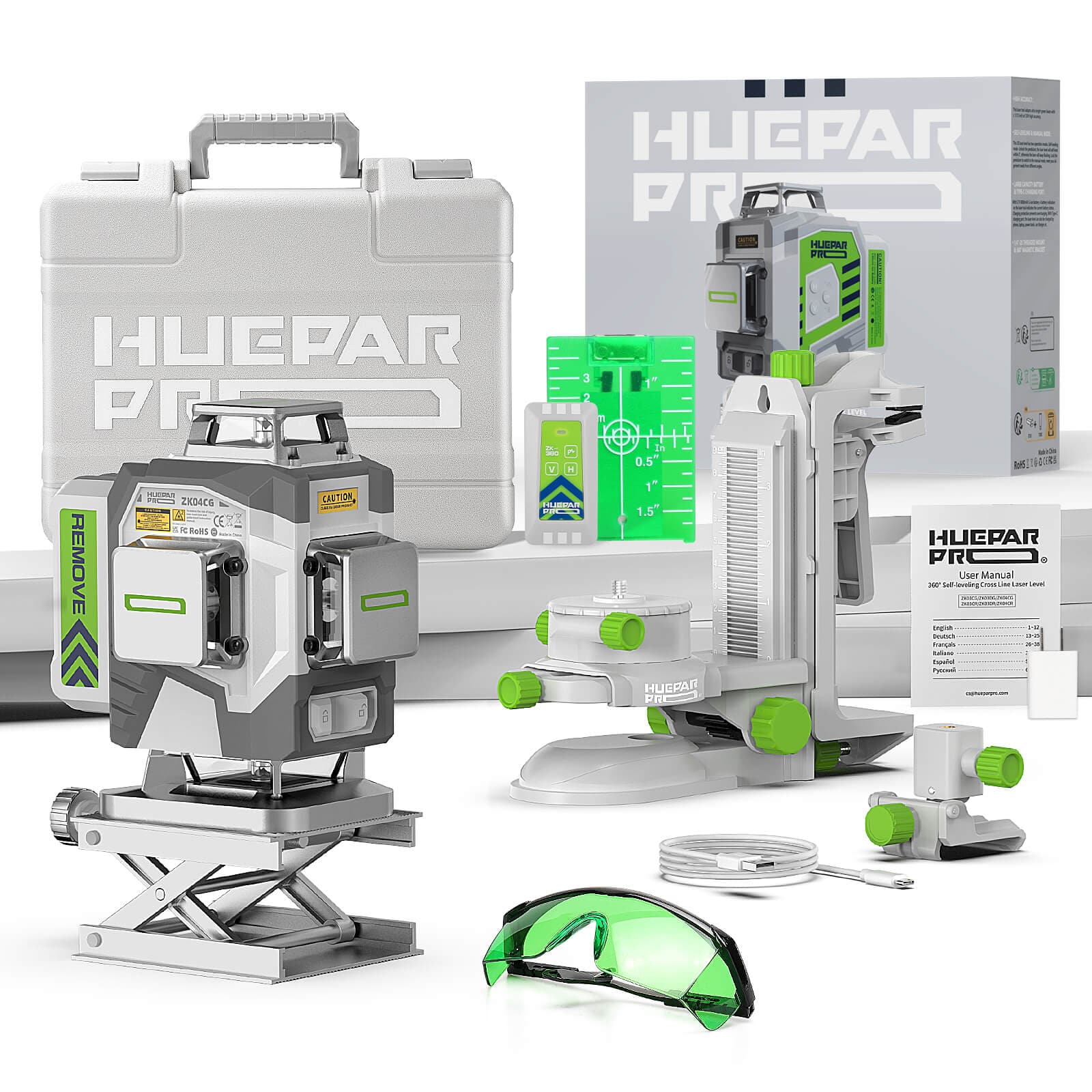

What's in the box

Huepar ZK04CG

x1

Hard Carry Case

x1

Remote Control

x1

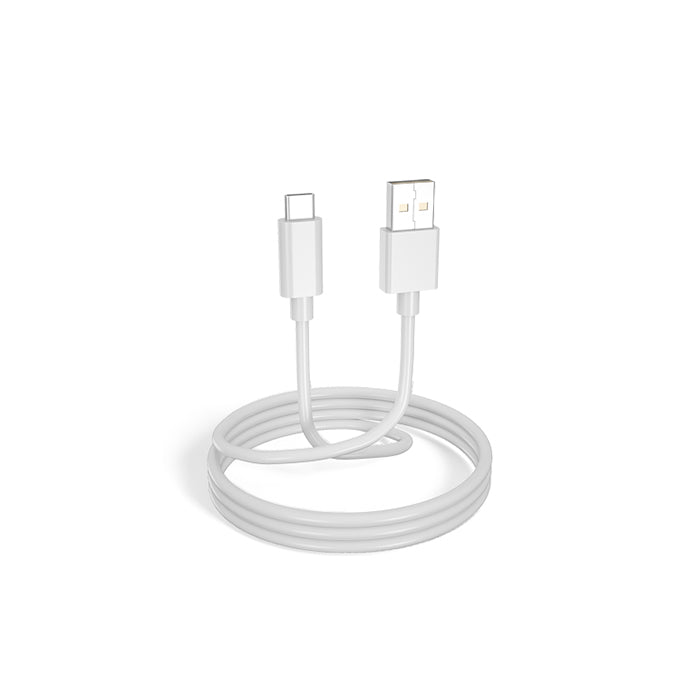

Type-C Power Cord

x1

Power Adapter

x1

Li-ion Battery

x1

Magnetic Bracket

x1

Lifting Base

x1

Green Glasses

x1

Laser Target Plate

x1

User Manual

x1

Color Paper Box

x1

Product Comparison

Huepar Pro ZK04CG Laser Level

Huepar Pro ZK04CG Laser Level

$235.99
Instock
View more
Huepar W04CG Laser Level

Huepar W04CG Laser Level

$289.99
Instock
View more
Huepar S04CG Laser Level

Huepar S04CG Laser Level

$236.99
Instock
View more
Huepar HX04CG Laser Level

Huepar HX04CG Laser Level

$199.99
Unavailable
View more
Bluetooth Function
Field icon
Bluetooth Function
Field icon
Bluetooth Function
Bluetooth Function
LCD Screen
Field icon
LCD Screen
Field icon
LCD Screen
Field icon
LCD Screen
Remote Control
Field icon
Remote Control
Field icon
Remote Control
Remote Control
APP
Field icon
APP
Field icon
APP
APP
Brightness Adjustment
Field icon
Brightness Adjustment
Brightness Adjustment
Field icon
Brightness Adjustment
Field icon
Rotating Base
Field icon
Rotating Base
Field icon
Rotating Base
Field icon
Rotating Base
Field icon
Laser Beam Supplier
Field icon
Laser Beam Supplier
Field icon
Laser Beam Supplier
Laser Beam Supplier
Field icon

±1/13 in. at 33 ft

Accuracy
Field icon

±1/9 in. at 33 ft

Accuracy
Field icon

±1/9 in. at 33 ft

Accuracy
Field icon

±1/13 in. at 33 ft

Accuracy
Field icon

505-520nm

Wavelength
Field icon

510-530nm

Wavelength
Field icon

510-530nm

Wavelength
Field icon

505-520nm

Wavelength
Field icon

±3°

Leveling Range
Field icon

±3°

Leveling Range
Field icon

3.5°±1°

Leveling Range
Field icon

±3.5°

Leveling Range
Field icon

3 seconds

Self-leveling Time
Field icon

4 seconds

Self-leveling Time
Field icon

4 seconds

Self-leveling Time
Field icon

3 seconds

Self-leveling Time
Field icon

8 hours

Working Time
Field icon

6.5 hours

Working Time
Field icon

5 hours

Working Time
Field icon

6 hours

Working Time
Field icon

700g

Model Weight
Field icon

/

Model Weight
Field icon

790g

Model Weight
Field icon

/

Model Weight
Field icon

98ft, 197ft with detector

Working Range
Field icon

66ft, 130ft with detector

Working Range
Field icon

66ft, 130ft with detector

Working Range
Field icon

98ft, 197ft with detector

Working Range

Customer Reviews

Customer Reviews

Based on 46 reviews
80%
(37)
9%
(4)
7%
(3)
4%
(2)
0%
(0)
O
Oscar Hernandez (Jacksonville, US)

awesome

O
Orin Brown (Denver, US)
Great so far, but only a few small jobs

Seems fine so far

S
Steve Sellenger (Portland, US)

Very easy to work with

C
Császár Tamás (Budapest, HU)
Professzionális építőipari lézer

Nagyon masszív szerkezet. Esőben is jól vizsgázott. A kiegészítők is nagyon jól megvalósítottak. Azt gondolom, innentől maradok csak a Hueparnál.

M
Matt (Lebanon, US)

Great laser.

Have a question?

Huepar Pro ZK04CG FAQs

Find out how to set up your laser level, which accessories are included, and what you’ll need for outdoor work. Still have a question? Contact Huepar Support.

Contact Support

What does 4 × 360° mean, and what can I use it for?

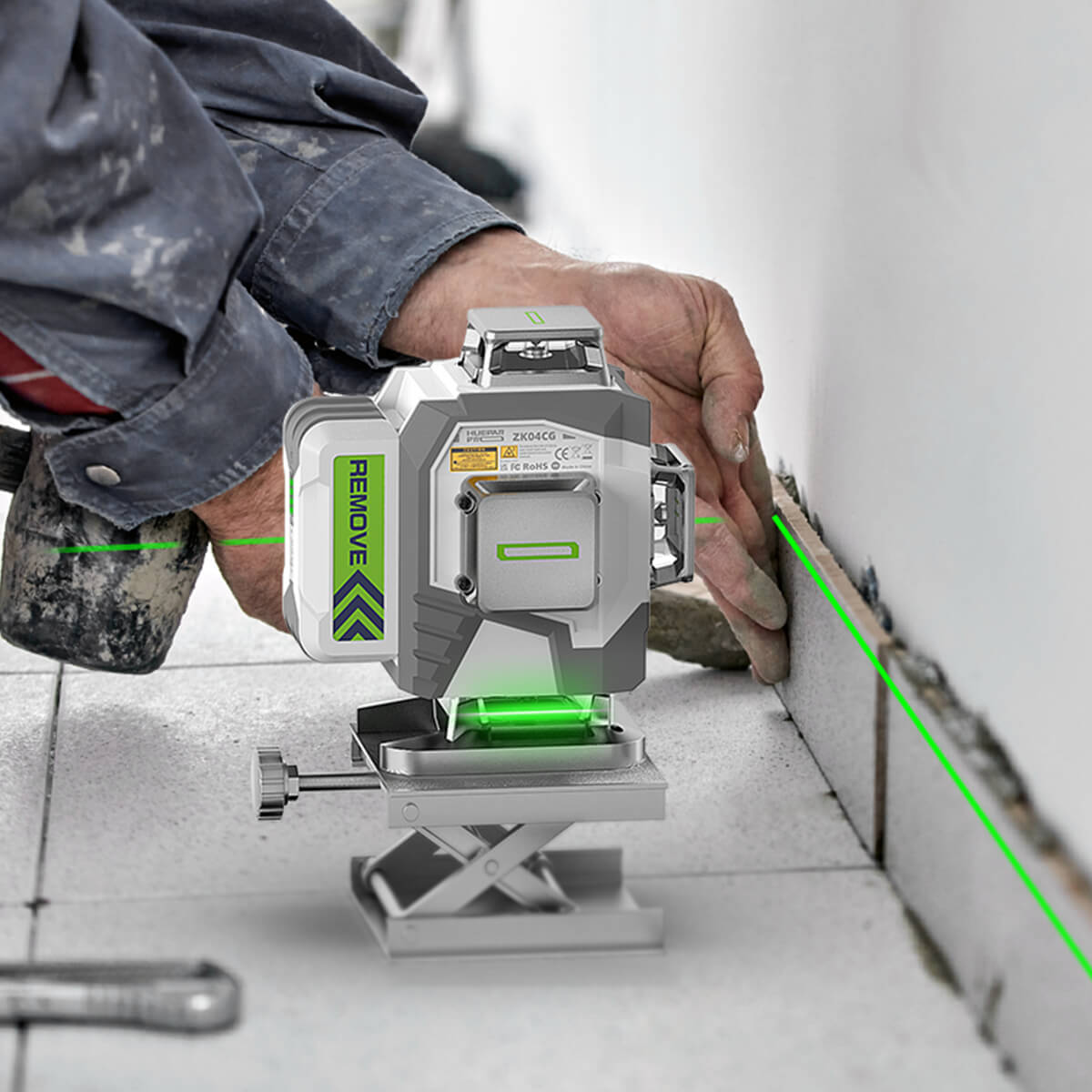

The ZK04CG projects two horizontal and two vertical 360° green laser planes. Use the lower horizontal plane for floor tile layout, the upper horizontal plane for ceiling work, and the vertical planes to align wall tile or cabinet edges. The laser is rated at ±1/13 in. at 33 ft.

Can I use the ZK04CG outdoors, and do I need a receiver?

What’s the difference between self-leveling and manual mode?

Can I switch individual laser lines with the remote?

How long does the battery last, and how do I charge it?

Can I mount it on a tripod or fine-tune the line height?

What does the 5 year warranty entail?
