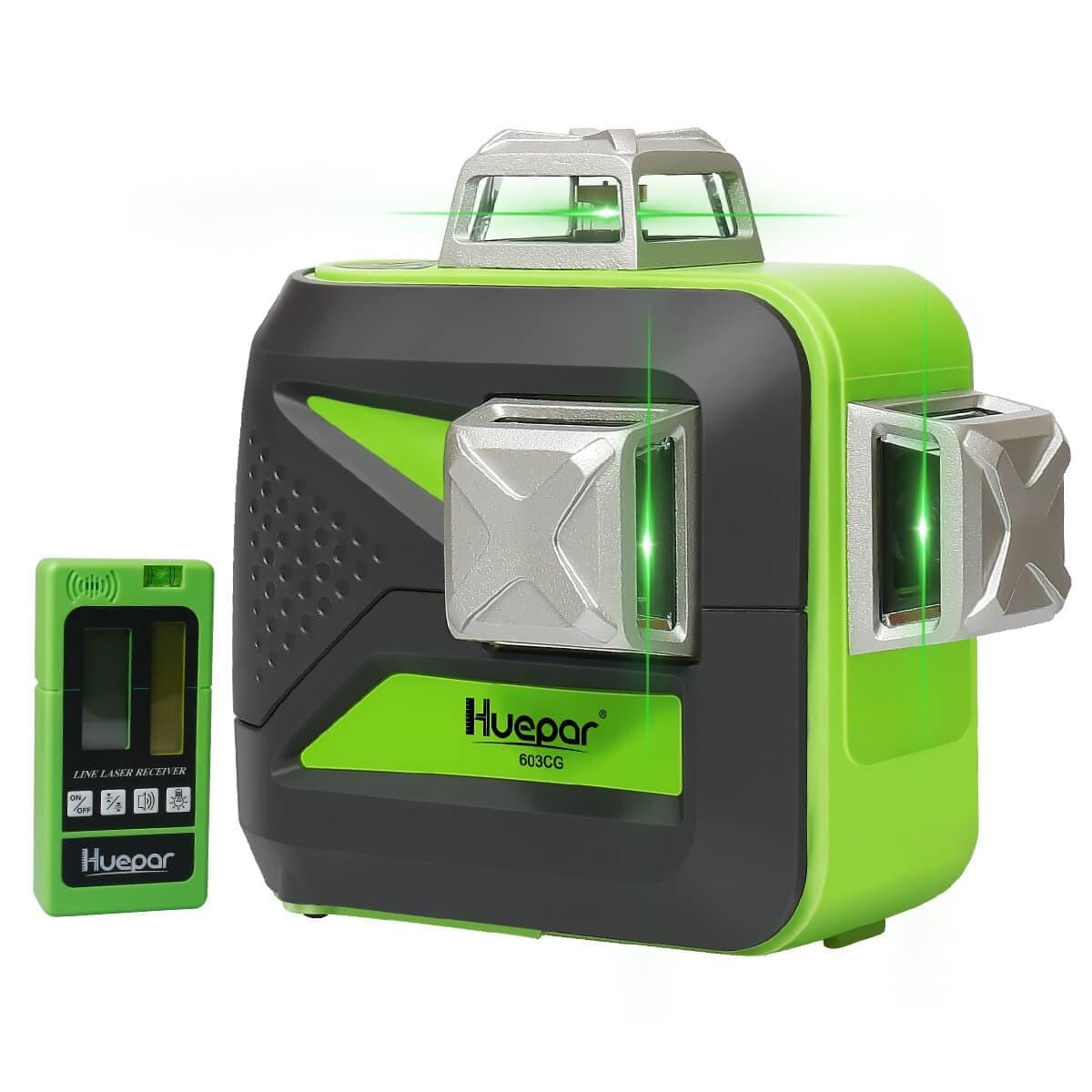

Huepar 603CG - 3D Green Beam Self-Leveling 3 X 360° Laser Level
3 x 360° Multiple Line Switching Functions
- This laser level allows users to line up level, align, square and plumb by generating three 360° laser planes –one horizontal and two vertical lines.
- The one 360° horizontal and two 360° vertical laser lines can be selected individually depends on job site applications.
- Multiple Line Switching Modes can be Selected Freely Accordingly: 360° Horizontal Line mode, one 360° Vertical Line mode, Two 360° Vertical Lines mode, 360° Horizontal&360° Vertical Lines mode.
Self-leveling mode & Manual mode
Self-leveling mode:
When the laser tool is switched to the unlocked position, self-leveling mode is enabled. The laser beam will blink continuously when the tool is beyond self-leveling range (4°±1°).
Manual mode:
When the pendulum locked, you can place the laser tool at any angle to have non-level straight lines. The laser beam will blink every 3-5 seconds to remind you that it's not self-leveling now.
Pulse Mode
- Turn ON pulse mode: After power on, short press the button besides the power button to turn on the pulse mode. The indicator will light up in red.
- Pulse mode extends the working range up to 200Ft in brighter working conditions when using with Huepar Line Laser Receiver.
- When use with a receiver, it’s necessary to turn on the pulse mode.
- It is compatible with Huepar LR-6RG Line Laser Receiver only.
Easy Use
- Metal Top Design: Over-molded metal top laser window with IP54 water/dust resistance ensures you work well in hazardous working environments.
- Green Target Plate: Increases the visibility of the laser beam.
- 360° Strong Magnetic Pivoting Base: Allows for attachment to metal track and steel，supporting you to turn the laser level around at 360 degree, delivering lines at any angle
- Two Mount Sizes: 1/4"-20 and 5/8"-11 mounting threads for temporarily fastening in place or being fixed on tripod.
Triple Power Supply
- This laser tool utilizes the included large capacity lithium battery which is compatible with Samsung SB-L110 battery.
- This laser tool comes with an holder for installing AA battery for using the tool.
- Direct input charging: This laser tool can be used at job site with direct input charging even if take out the battery.
- Charging protection help prevent the tool from overcharge.
Items in the Package
- 1 x Huepar 603CG 360 Green Self-Leveling 3D Cross Line Laser Level
- 1 x Rechargeable Lithium Battery
- 1 x Power Adapter
- 4 x AA (LR6) Batteries
- 1 x AA Battery Holder
- 1 x Magnetic Pivoting Base
- 1 x Laser Target Plate
- 1 x User Manual
All official website orders will automatically receive a free 2-year membership warranty.
We insist on providing customers with high-quality products and promise to provide customers with 24-month worry-free after-sales service.
The time frame of an order delivery is divided into two parts:
- Processing time: 1-2 working days
- Shipping time: 2-5 working days
We offer free shipping on orders of $99 or more. If your order does not qualify for free shipping, the shipping fee will be shown on the address-filing page once the order is settled.
We accept the following forms of payment:
1. Credit Card (Visa, MasterCard, American Express, Discover)
2. Debit Card (Visa, MasterCard, Discover)
3. Paypal
4. Paypal Credit
5. Apple Pay
6. Google Pay
7. Shop Pay
8. Affirm Financing (excluding West Virginia and Iowa)
9. Bank Transfer
PREMIUM SERVICE, SUPERIOR QUALITY
24/7 Premium service team
Equipped with factory-trained experts, Huepar's consumer service team strives to find the right solution for your needs – from advice to sales and repair & maintenance services.
You can enjoy efficient support from Huepar- we promise to respond in 24hrs and solve the problem in 48hrs.
Lifetime Customer Support
All Huepar products come with lifetime customer support - no worries about exceeding the service period.
All product defects, such as accuracy malfunction, battery and charger damage and requests for replacement parts will be dealt with on time, every time.
Note: Please contact our customer care using online chat service at https://huepar.com/support or email“support@huepar.com”if there is any problem with your payment.
Which is the Best for You?
Product SKU |
603CG
|
603BT-H
|
603CG-BT
|
603CG-H
|
603CR
|
|---|---|---|---|---|---|
Product type |
3D Laser Levels
|
3D Laser Levels
|
3D Laser Levels
|
3D Laser Levels
|
3D Laser Levels
|
Number of Lines |
|
|
|
|
|
Laser Lines Expanded Angle
|
|
|
|
|
|
Laser Beam Supplier |
|
|
|
|
|
Laser Beam Color |
|
|
|
|
|
Laser Wavelength |
|
|
|
|
|
Line Accuracy |
|
|
|
|
|
Leveling / Compensation Range |
|
|
|
|
|
Max Self-leveling Time (Seconds) |
|
|
|
|
|
Bluetooth Connectivity |
|
|
|
|
|
Remote Control |
|
|
|
|
|
Dot Accuracy |
|
|
|
|
|
Line Switching |
|
|
|
|
|
Pulse Laser Receiver Mode |
|
|
|
|
|
Working Range (60-100 LUX) |
|
|
|
|
|
Working Range with Detector |
|
|
|
|
|
AA Battery Not included with product
|
|
|
|
|
|
Li-ion Battery |
|
|
|
|
|
Working Time (Hours) |
|
|
|
|
|
Charging Time (Hours) |
|
|
|
|
|
Mount Size |
|
|
|
|
|
Durable Design |
|
|
|
|
|
Hard Carry Case |
|
|
|
|
|
Let’s Answer Your Questions
What are the features of Huepar 603CG laser level?
What is the working distance of the 603CG laser level?
What is the battery life of the 603CG laser level?
What applications is the 603CG laser level suitable for?
How does the 603CG laser level differ from the 503CG?
What's the warranty?
After you receive the machine, scan the QR code on our carton, fill in the information and submit to get a 2-year warranty. At the same time, after you submit, we can also check your warranty information on the system, thank you!
Still have questions? Get help from a Huepar Support.
Customer Reviews
You Might Also Like
Huepar S04CG - 4D 16 Lines Osram Self-Leveling LCD Screen Laser Level
Huepar TPD14 - 56 inch/143cm Tripod Adjustable
Huepar LR6RG - Laser Detector/Line Laser Receiver
Huepar LR5RG - Laser Detector/Line Laser Receiver
Huepar LP36 - 3.7m/12ft Laser Telescoping Pole
Huepar 603CG - 3D Green Beam Self-Leveling 3 X 360° Laser Level
Huepar GF360G - 3D Green Beam Self-Leveling Laser Level with Magnetic Pivoting Base
Huepar 903CG - 3x360 ° Self-Leveling 12 Lines 3D Cross Line Laser Level
WARNING:
Do not point the laser beam directly into the eyes.
The device is a laser class 2 laser product according to IEC / EN60825-1 / 2014. It is allowed to use the device without any further safety precautions.
The eye protection is usually secured by aversion reactions and blink reflex.
Huepar Laser Level has undergone laboratory benchmark testing to ensure that the working temperature range of the product is: -10℃ ~ 50℃ / 14℉ ~ 122℉; the recommended temperature for product storage is: -20℃ ~ 70℃ / -4℉ ~ 158℉.
