Huepar 603BT-H Laser Level
Huepar 603BT-H Laser Level
Huepar 603BT-H Laser Level
Tax included, shipping calculated at checkout.
Select Option
Add Top Accessories
Huepar LR5RG - Laser Detector/Line Laser Receiver
Huepar TPD14 - 56 inch/143cm Tripod Adjustable
Huepar LP36 - 3.7m/12ft Laser Telescoping Pole
Expand Extended Warranty?
12 in stock
Couldn't load pickup availability
Pay with Ease
Trusted Delivery with DHL/UPS/FedEx/USPS
-
Ordered
- - -
Order Ready
- - -
Delivered
Accessories Guides
Huepar Line Laser Receiver
The LR5RG / LR6RG is a laser detector compatible with most Huepar laser levels on Pulse Mode, detecting red or green lasers up to 200 feet away. Main products include LR5RG, LR6RG, LR8RG.
Huepar Tripods
Made of aluminum alloy for stable support with a maximum load capacity of 10kg/22lb. Compatible with most measuring tools. Main products: LP36, M3Y, TPD05, TPD14, TPD16.
Huepar Laser Adapter
The AT2 adapter can be connected to any device that features a male thread, including Huepar laser levels such as 622CG/R, 621CG/R, 8211G, among others. The AT3 adapter is compatible with devices having 5/8" or 1/4" male thread, supporting models like 603CG/R, 621CG/R, and more.
Huepar Magnetic Bracket
This accessory raises the beam to your desired reference height, featuring TPR soft rubber on all sides for shock resistance. Main products: PV3, PV5, PV7, PV11+, PV15.
Huepar Care
By purchasing this one-year extended warranty, your Laser Level can enjoy a total of 3 years of warranty service.
1. This product (Huepar Care) is a special service product and cannot be returned.
2. Valid for one year starting from the date of purchase.
3. The service includes Free replacement of accessories such as laser windows, chargers, batteries, etc, and other accidental damage.
4. Restricted to huepar.com orders.
5. Huepar official has the final right to interpret this.
-
BLUETOOTH TECHNOLOGY: With Bluetooth connectivity, users can control the setup of the laser from across the room with smart phone and Huepar laser level App. Huepar App is free to download and use, the App can switch ON/OFF the laser lines and pulse mode, select the laser planes, adjust the line visibility and provide out-of-level alarm.
-

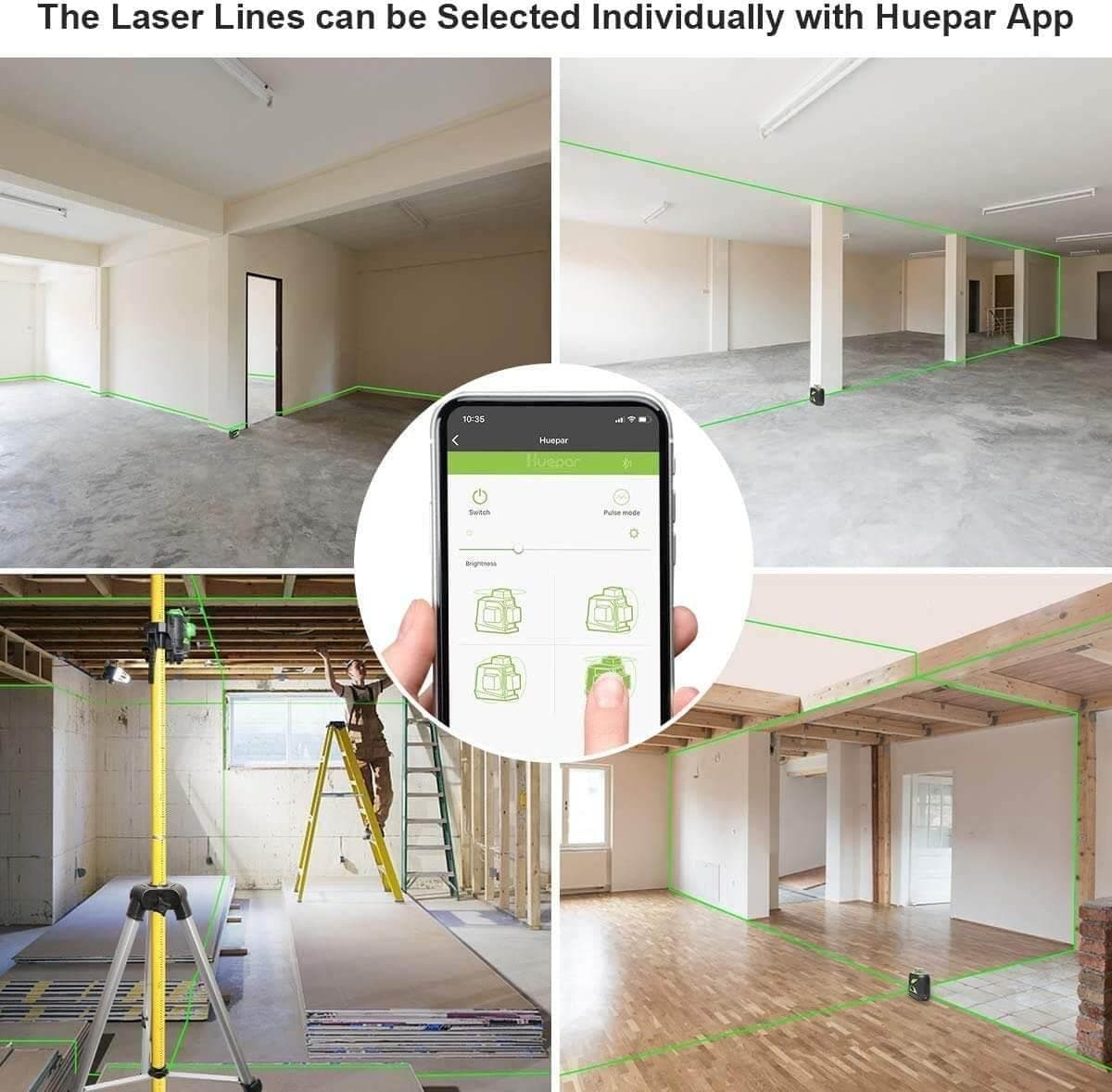

MULTIFUNCTIONAL 3 x 360 LASER TOOL: One 360° horizontal and two 360° vertical planes enable users to cover the floor, wall, ceiling all around the room. The three laser lines can be selected individually depending on job site applications. With our smart pendulum system, this green light laser level self levels and indicates out-of-level condition while pendulum unlocked. Once pendulum locked, it switches to manual mode to lock lines for use at any angle.
-

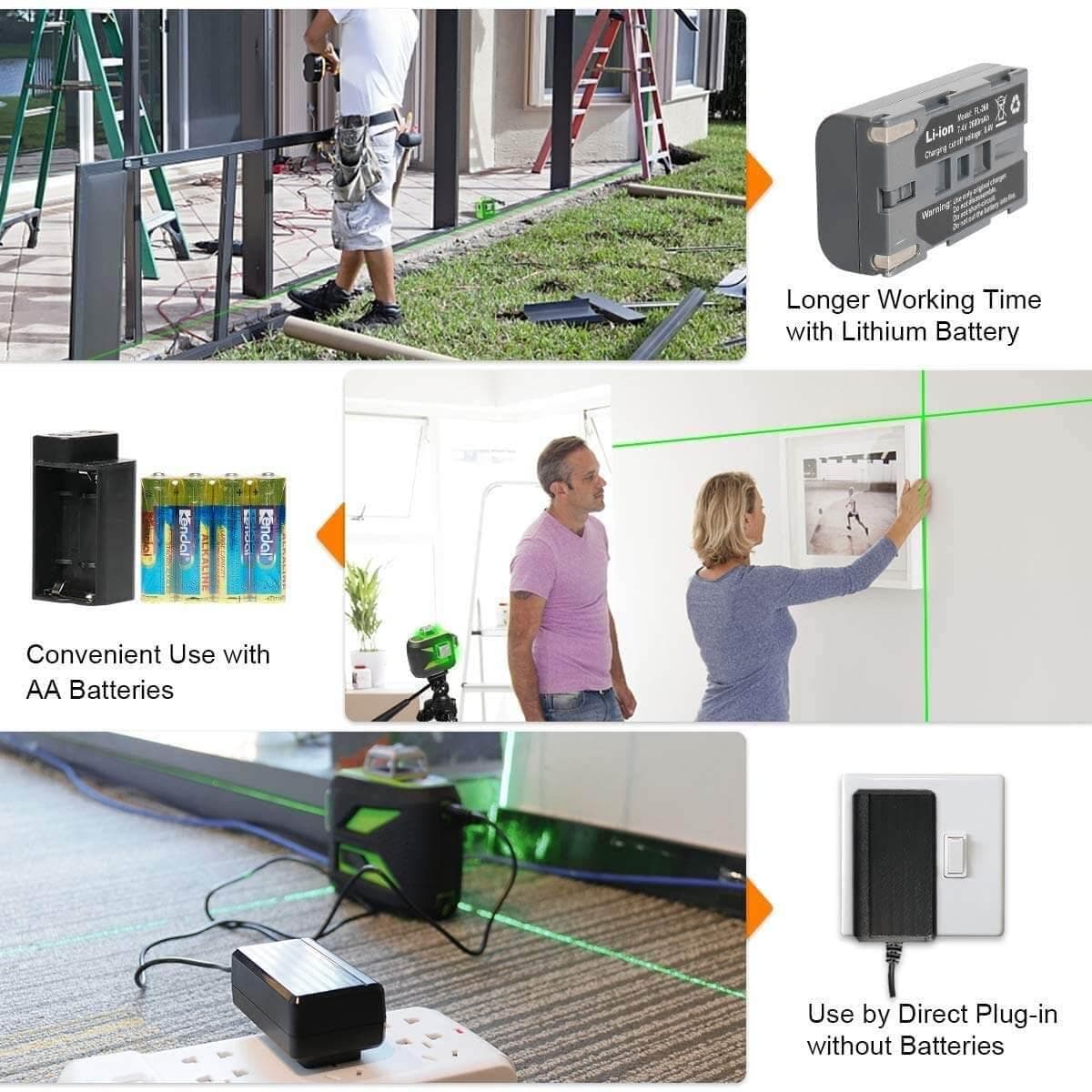

TRIPLE POWER TECHNOLOGY: This green light laser level employed the included large capacity lithium battery (can be purchased easily at local market) for extended run-time, or with 4 AA alkaline batteries. In addition, this green light laser level tool can be used at job site with direct input charging when taking out the battery. Charging protection helps prevent the tool from overcharge. 4 battery indicators on keypad allow users to know the current battery volume anytime.
-

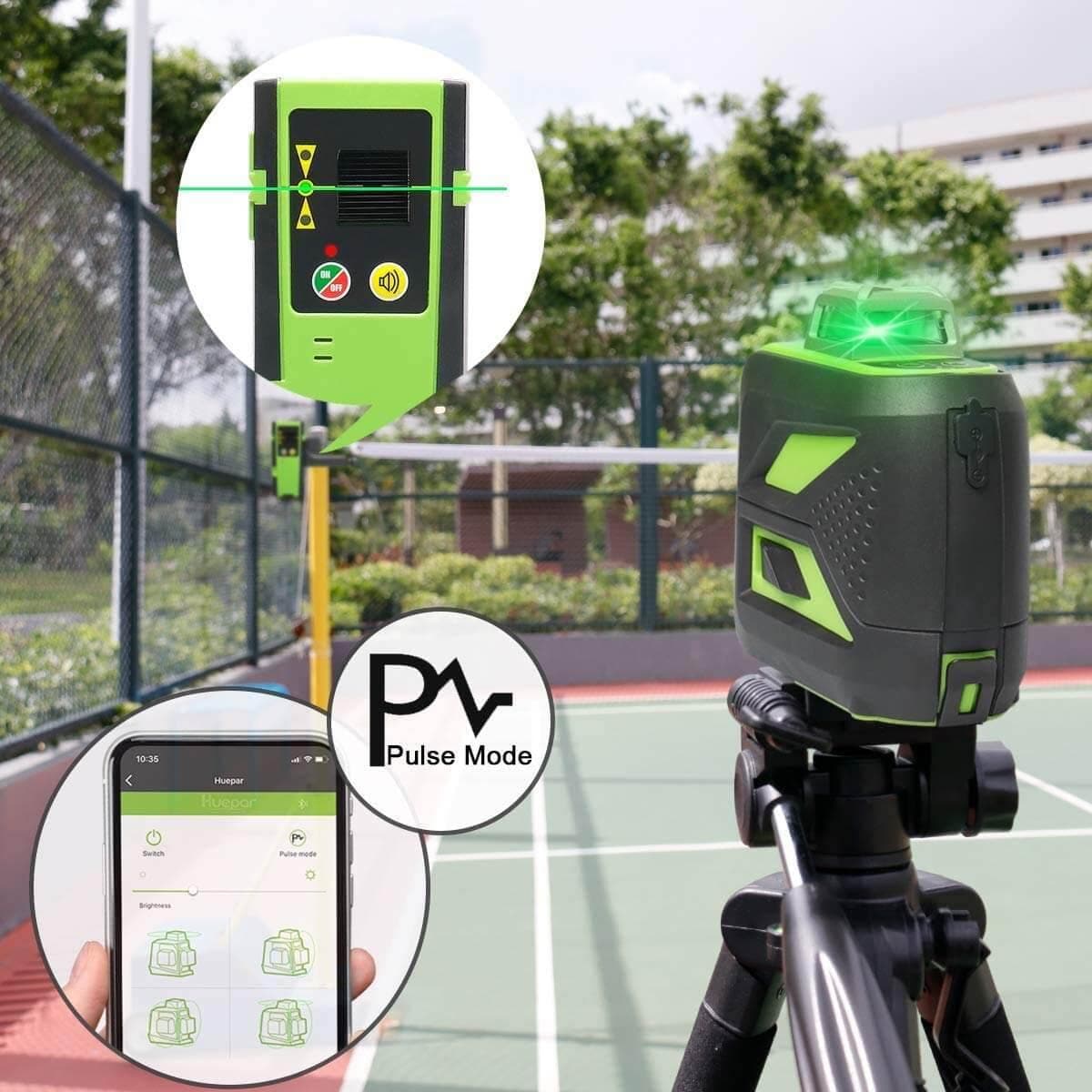

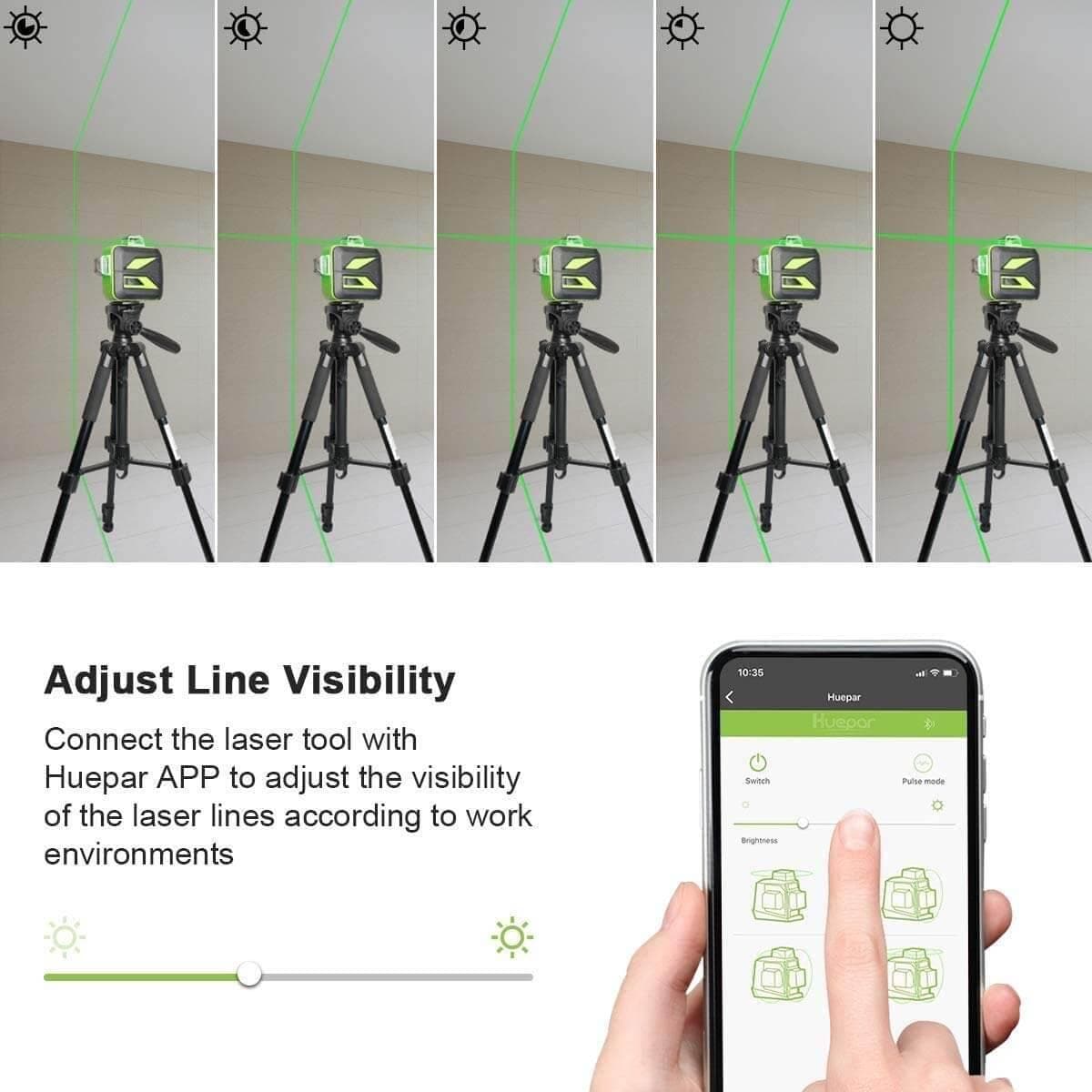

VISIBILITY AND PULSE MODE: This green laser level projects green laser beam which is up to 4X brighter than standard red beams. Connect the laser tool with the Huepar APP to adjust the brightness of the laser according to work or environment needs, which can extend overall battery life of the line laser. With the outdoor pulse mode, the working range can be extended up to 200Ft with Huepar Line Laser Receiver LR-6RG/LR-5RG in bright-light or outdoor conditions.
-

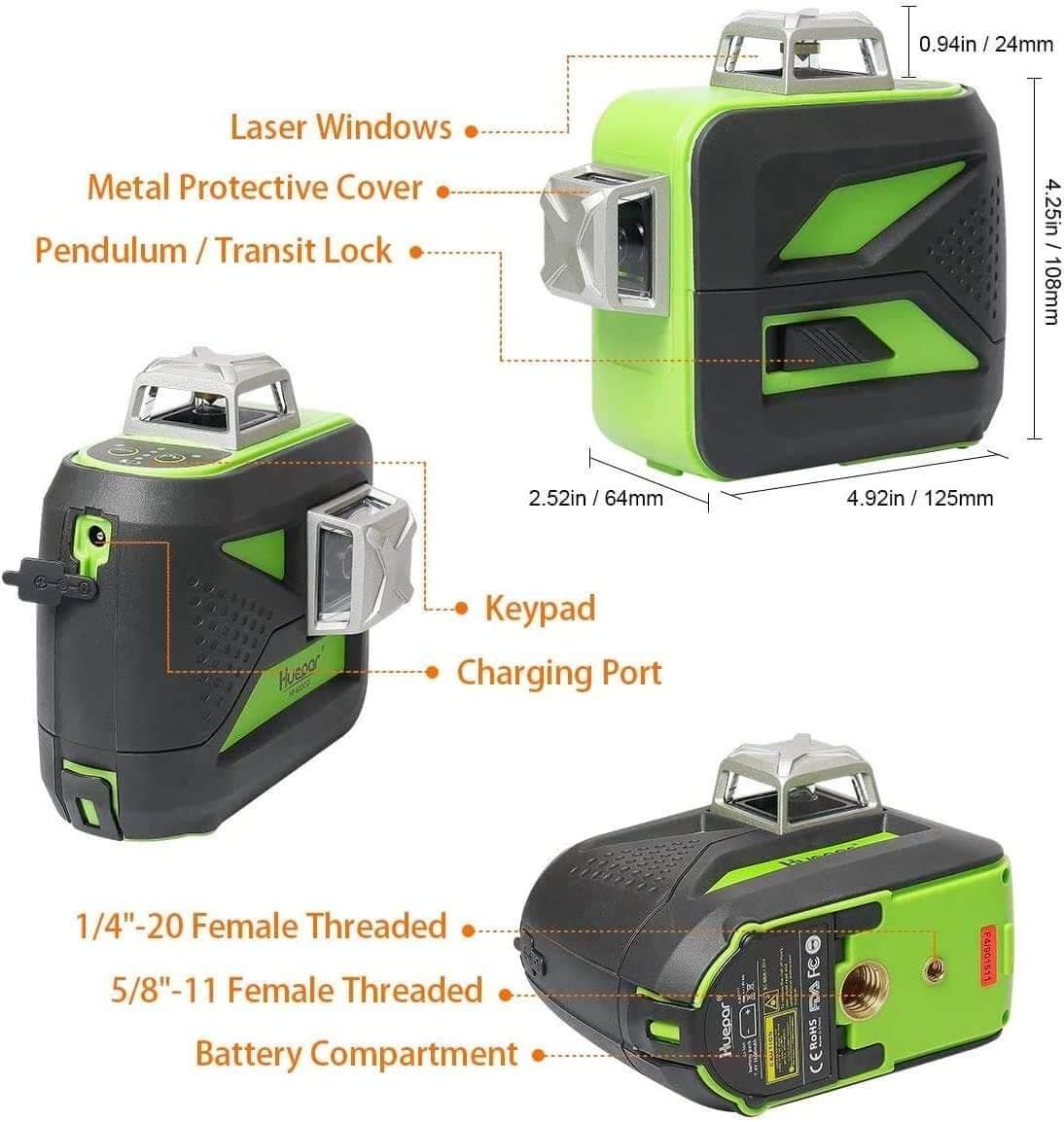

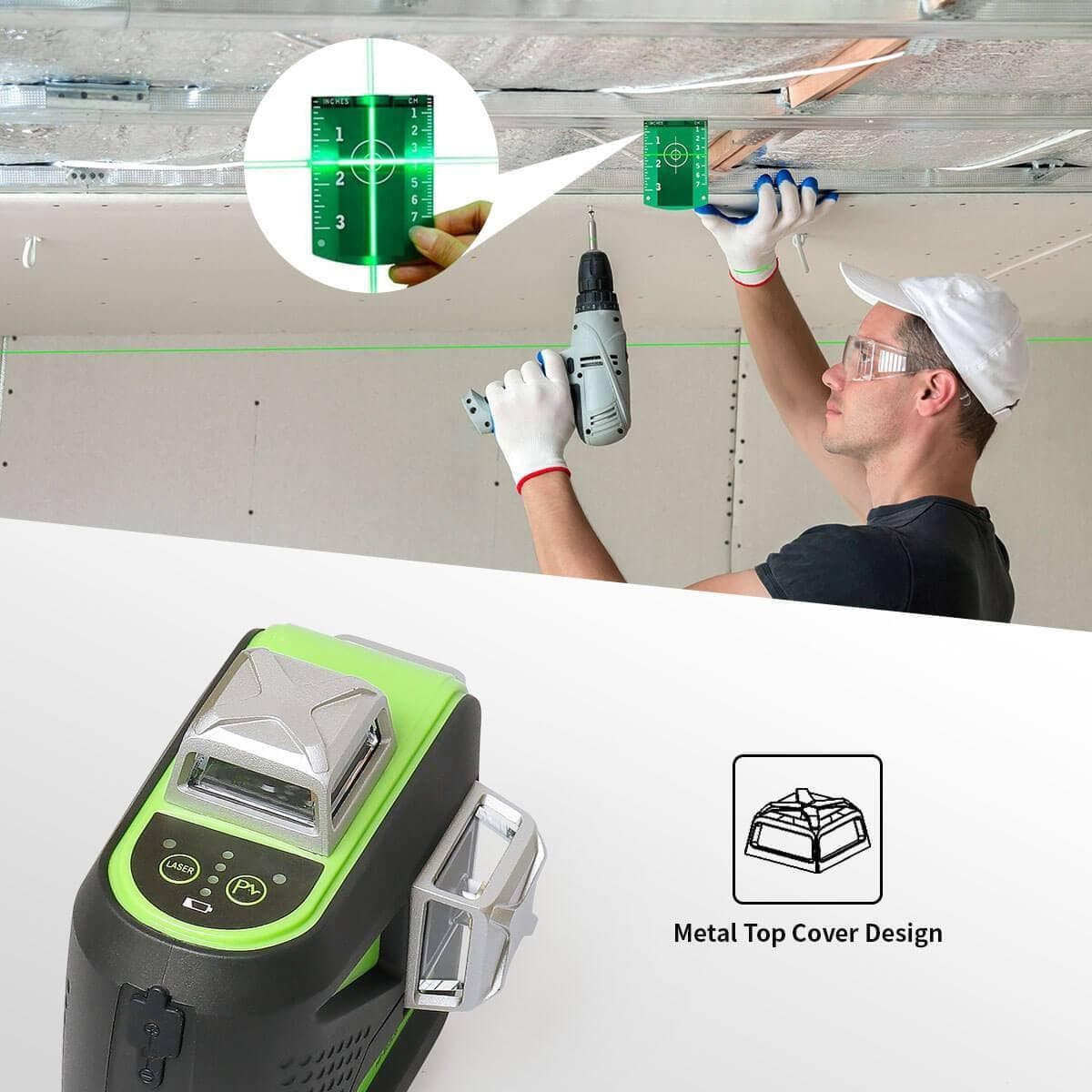

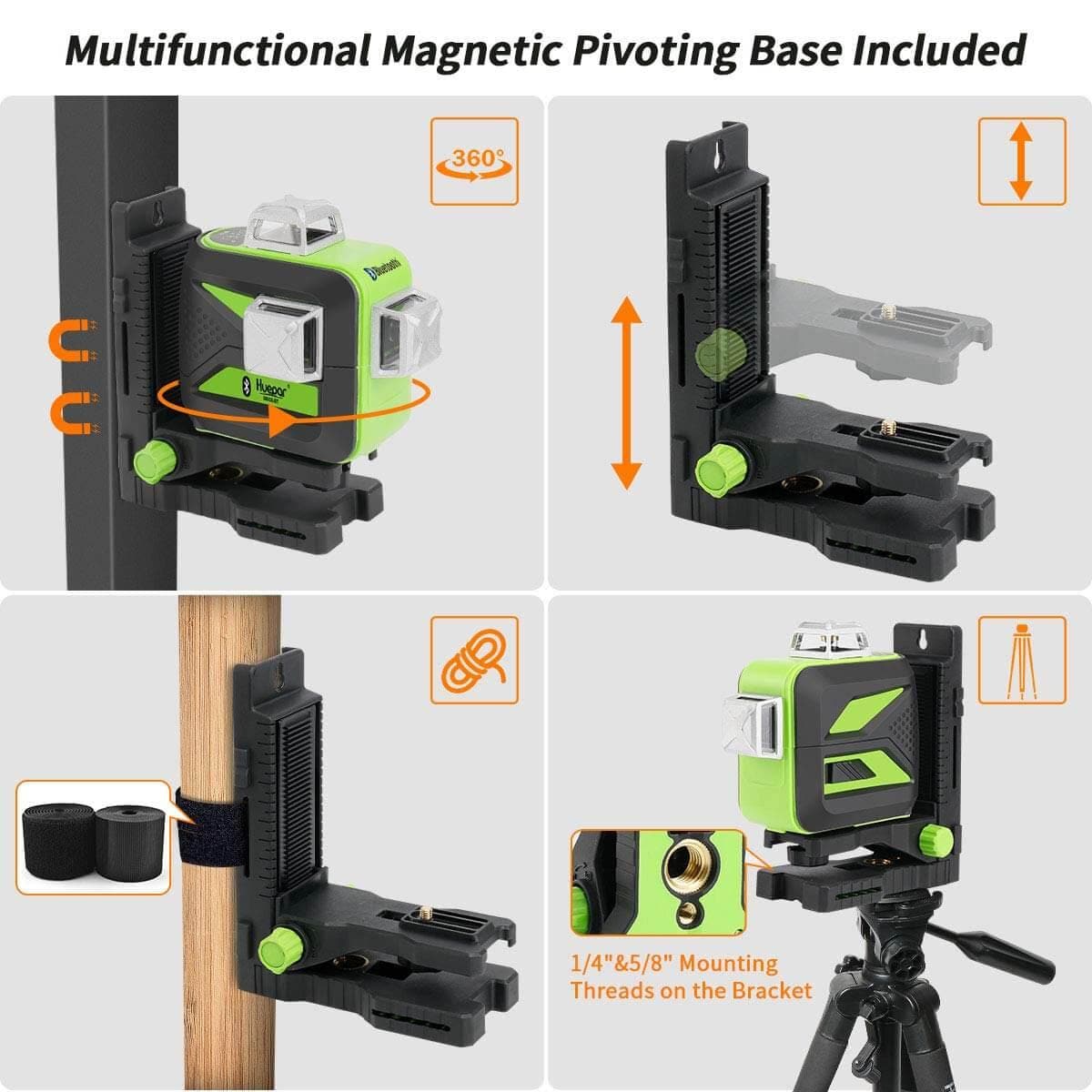

DURABLE DESIGN & KIT CONTENTS: Over-molded metal laser window with IP54 water/dust resistance ensures you work well in hazardous working conditions. The laser tool also offers 1/4"-20 and 5/8"-11 mounting threads to suit for different tripod threads. Strong magnetic pivoting base allows for attachment to metal track and steel. The kit comes with a hard carry case bringing much more convenient to carry and store the laser tool.
Smart Pendulum
Self-leveling Mode:
- When the laser tool is switched to the unlocked position, self-leveling mode is enabled. The laser beam will blink continuously to indicate out-of-level condition up to ±4°.
- Connecting with Huepar APP, a level icon will be displayed to remind user when it is beyond the self-leveling range.
Manual Mode:
- When the pendulum lock is in locked position, manual mode locks laser lines for use at any angle. The laser beam will blink every 3-5 seconds to remind it's not self-leveling now.
- When connecting with Huepar APP, a lock icon will be displayed to remind user it is in manual mode now.

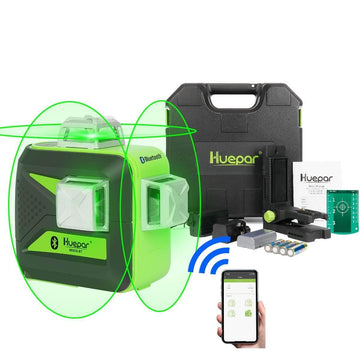

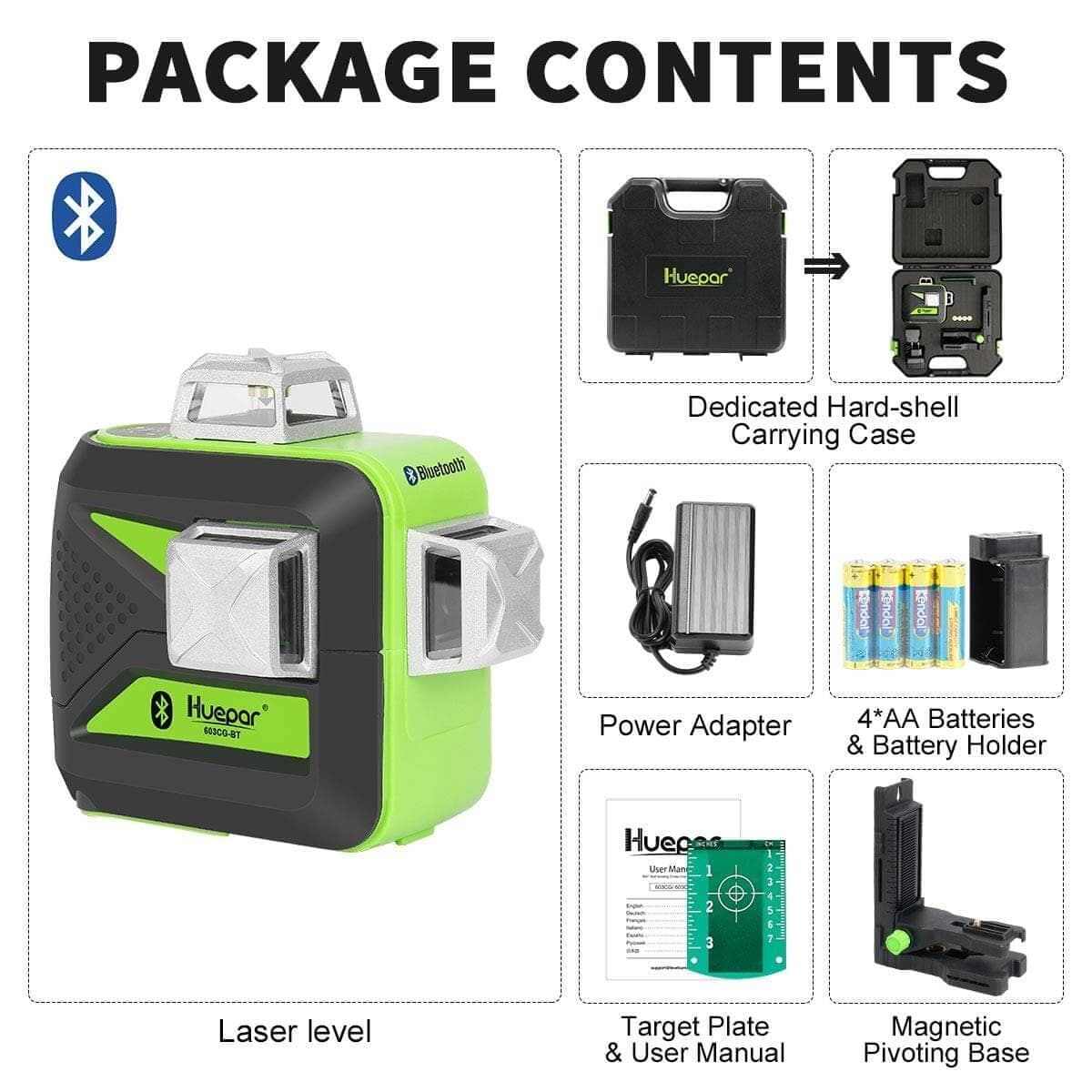

Package Contents:
- 1 x Huepar 603CG-BT 3D Cross Line Laser Level
- 1 x Magnetic Pivoting Base
- 1 x Rechargeable Li-ion Battery
- 4 x AA Batteries
- 1 x AA Battery Holder
- 1 x Power Adapter
- 1 x Laser Target Plate
- 1 x Hard Carrying Case
- 1 x User Manual
Find your perfect laser level
 Huepar 603BT-H Laser Level$169.99 |  Huepar 603CG-BT Laser Level$149.99 |  Huepar 603CG-H Laser Level$159.99 |  Huepar 603CG Laser Level$149.99 | |
|---|---|---|---|---|
| Product Info | ||||
Product SKU |
603BT-H
|
603CG-BT
|
603CG-H
|
603CG
|
Product type |
3D Laser Levels
|
3D Laser Levels
|
3D Laser Levels
|
3D Laser Levels
|
| Featured | ||||
Number of Lines |
|
|
|
|
Laser Lines Expanded Angle
|
|
|
|
|
Laser Beam Supplier |
|
|
|
|
Laser Beam Color |
|
|
|
|
Laser Wavelength |
|
|
|
|
Line Accuracy |
|
|
|
|
Leveling / Compensation Range |
|
|
|
|
Max Self-leveling Time (Seconds) |
|
|
|
|
Bluetooth Connectivity |
|
|
|
|
Remote Control |
|
|
|
|
Dot Accuracy |
|
|
|
|
Line Switching |
|
|
|
|
Pulse Laser Receiver Mode |
|
|
|
|
Working Range (60-100 LUX) |
|
|
|
|
Working Range with Detector |
|
|
|
|
AA Battery Not included with product
|
|
|
|
|
Li-ion Battery |
|
|
|
|
Working Time (Hours) |
|
|
|
|
Charging Time (Hours) |
|
|
|
|
Mount Size |
|
|
|
|
Durable Design |
|
|
|
|
Hard Carry Case |
|
|
|
|
Endorsed By
All buttons are tested to ensure proper functionality.
The switch is tested repeatedly to ensure that the machine works stably.
Make sure the charging interface is working properly and not loose.
Laser tube aging test to ensure no brightness attenuation.
Waterproof and dustproof, ensuring normal use in dusty environments.
Simulate natural drops while maintaining accuracy.
Simulate complex transportation environments to ensure unchanged accuracy.
Make sure the device can work normally between -10℃ ~ 50℃
High Quality Ensured by Professional Testing
Every product goes through 8 strict inspection processes before it is delivered to you to ensure that you receive products of consistent quality.
