Huepar 603CR Laser Level

Huepar 603CR Laser Level


Regular price $124.02
Regular price $124.02 Sale price $206.70
- 40% Sold out

Huepar 603CR Laser Level

Huepar 603CR Laser Level

check_circle Tax included, shipping calculated at checkout.

Regular price $124.02
Regular price $124.02 Sale price $206.70
- 40% Sold out


Select Option

Add Top Accessories

Learn which accessories are right for you >
Huepar TPD14 - 56 inch/143cm Tripod Adjustable - HUEPAR US

Huepar TPD14 - 56 inch/143cm Tripod Adjustable

$75.78
Huepar LP36 - 3.7m/12ft Laser Telescoping Pole - HUEPAR US

Huepar LP36 - 3.7m/12ft Laser Telescoping Pole

$118.50

Expand Extended Warranty?

Learn more >

Huepar Care - 2-Year Official Warranty

$0.00 $34.44

Huepar Care - 1 Year Extended Warranty

$41.33

Low stock: 1 left

Pay with Ease

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Trusted Delivery with DHL/UPS/FedEx/USPS


add_shopping_cart

-

Ordered

local_shipping

- - -

Order Ready

redeem

- - -

Delivered

View full details
Overview



  • FULL LAYOUT WITH 3 X 360 LINE LASERS: One 360° horizontal and two 360° vertical planes enable users to cover the floor, wall, ceiling all around the room. Two vertical lines cross at 90°angles makes user quickly visualize and finish square layout. This self leveling cross line laser is a complete level tool as well as an alignment laser aids in full room layout.

  • TRIPLE POWER TECHNOLOGY: Huepar laser tool employed the included large capacity lithium battery (can be purchased easily at local market) for extended run-time, or with 4 AA alkaline batteries. In addition, this self leveling cross line laser can be used at job site with direct input charging even if take out the battery. Charging protection help prevent the tool from overcharge. 4 battery indicators on keypad allow users to know the current battery volume anytime.

  • MULTIFUNCTIONAL LASER TOOL: The one 360° horizontal and two 360°vertical laser lines can be selected individually depends on job site applications. With our smart pendulum system, this self leveling cross line laser self levels and indicates out-of-level condition while pendulum unlocked. Once pendulum locked, it switches to manual mode to lock lines for use at any angle.

  • POWER-SAVING OUTDOOR PULSE MODE: This laser level projects bright red beam with a working range up to 80Ft with +/- 1/9" at 33Ft accuracy. In addition, a power-saving pulse mode extends laser range up to 165Ft with Huepar LR-6RG/LR-5RG Line Laser Receiver in bright light or outdoor conditions and continuous working time. 603CR laser level makes job easier in brighter and larger space working conditions.

  • DURABLE DESIGN&WARRANTY: IP54 water/dust resistance ensures you work well in hazardous working conditions. The laser also offers 1/4"-20 and 5/8"-11 mounting threads to suit different tripod threads. Strong magnetic pivoting base allows for attachment to metal track and steel. 12 months limited warranty up to 24 months if become a royal member through product registration.

self leveling cross line laser



With advanced laser level technology, Huepar is committed itself to providing solutions for a wide variety of applications of greater accuracy and precision.

603CR 3 x 360 Red Laser Level Specifications:

  • Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output
  • Laser Wavelength: 635-660nm
  • Horizontal/Vertical Accuracy: ± 1/9 inch at 33Ft.
  • Leveling/Compensation Range: ±4°
  • Working Distance (Line): 85Ft (100 LUX), 165Ft with Huepar Line Laser Receiver
  • Operating Time with Lithium Battery: 10 hours with all laser beams on
  • Operating Time with AA Batteries: 5.5 hours with all laser beams on
  • Power Source: Li-ion battery&4×˝AA˝ (LR6) batteries
  • IP Rating: IP54
  • Operation Temperature Range: 14℉ ~ 113℉ (-10℃~ 45℃)
  • Mount Size: 1/4"-20 and 5/8"-11

WARNING: Avoid direct exposure of the laser beam to the eyes.



line laser level


3 x 360° Multiple Line Switching Functions

  • This self leveling cross line laser allows users to line up level, align, square and plumb by generating three 360°laser beams –one horizontal and two vertical lines.
  • The one 360° horizontal and two 360°vertical laser lines can be selected individually depends on job site applications.
  • Multiple Line Switching Modes can be Selected Freely Accordingly: 360° Horizontal Line mode, one 360° Vertical Line mode, Two 360° Vertical Lines mode, 360° Horizontal&360° Vertical Lines mode.



self leveling cross line laser details


Self-leveling mode:

When the laser tool is switched to the unlocked position, self-leveling mode is enabled. The laser beam will blink continuously when the tool is beyond self-leveling range (4°±1°).



Manual mode:

When the pendulum locked, you can place the laser tool at any angle to project non-level straight lines. The laser beam will blink every 3-5 seconds to remind you that it's not self-leveling now.


self leveling cross line laser application

Pulse Mode

  • Turn ON pulse mode: After power on, short press the button besides the power button to turn on the pulse mode. The indicator will light up in red.
  • Pulse mode extends the working range up to 165Ft in bright working conditions, using with Huepar Line Laser Receiver.
  • When use with a receiver, it’s necessary to turn on the pulse mode.
  • It is compatible with Huepar LR-6RG Line Laser Receiver only.



line laser level



Convenient Use

Battery Indicators: There are 4 indicators on the keypad to remind users of the current battery volume anytime.

Laser Target Plate: Increases the visibility of the laser beam.

360° Strong Magnetic Pivoting Base: Allows for attachment to metal track and steel,supporting you to turn the laser level around at 360 degree , projecting lines at any angle.

Two Mount Sizes: 1/4"-20 and 5/8"-11 mounting threads for temporarily fastening in place or being fixed on tripod.



cross line laser level



Triple Power Supply

This laser tool applies the included large capacity lithium battery which can be purchased easily at local market.

This self leveling cross line laser comes with an holder for installing AA battery for using the tool.

Direct input charging: This laser tool can be used at job site with direct input charging even if take out the battery.

Charging protection help prevent the tool from overcharge.



Items in the Package

  • 1 x Huepar 603CR 360 Self-Leveling 3D Cross Line Laser Level
  • 1 x Rechargeable Lithium Battery
  • 1 x Power Adapter
  • 4 x AA (LR6) Batteries
  • 1 x AA Battery Holder
  • 1 x Magnetic Pivoting Base
  • 1 x Laser Target Plate
  • 1 x User Manual



Find your perfect laser level

Customer Reviews

Based on 30 reviews
100%
(30)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
D
D***k

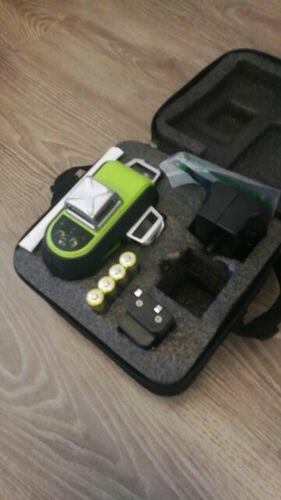

The level is excellent. When sending the order there was a small stop, but the seller was very worthy and during the day decided the question. I am very pleased with the purchase, I got more than expected.

D
D***k

The level is excellent. When sending the order there was a small stop, but the seller was very worthy and during the day decided the question. I am very pleased with the purchase, I got more than expected.

R
R***r

Упоковано отлично, все работает отлично, я очень доволен рекамендую

R
R***r

Упоковано отлично, все работает отлично, я очень доволен рекамендую

K
K***h

Level fire. Checked (weight and Hydrolevel)-accurately shows. The receiver in the apartment once shows, I'll try it on the street.

Endorsed By

≥ 5,000 times Button test

All buttons are tested to ensure proper functionality.

≥ 5,000 times Switch test

The switch is tested repeatedly to ensure that the machine works stably.

≥ 1,000 times Charging test

Make sure the charging interface is working properly and not loose.

≥ 500 hours Working test

Laser tube aging test to ensure no brightness attenuation.

IP54 extreme environment test

Waterproof and dustproof, ensuring normal use in dusty environments.

Natural drop and shock test

Simulate natural drops while maintaining accuracy.

Simulated transportation

Simulate complex transportation environments to ensure unchanged accuracy.

High and low temperature test

Make sure the device can work normally between -10℃ ~ 50℃

High Quality Ensured by Professional Testing

Every product goes through 8 strict inspection processes before it is delivered to you to ensure that you receive products of consistent quality.
