Accessories Guides
Huepar Line Laser Receiver
The LR5RG / LR6RG is a laser detector compatible with most Huepar laser levels on Pulse Mode, detecting red or green lasers up to 200 feet away. Main products include LR5RG, LR6RG, LR8RG.
Huepar Tripods
Made of aluminum alloy for stable support with a maximum load capacity of 10kg/22lb. Compatible with most measuring tools. Main products: LP36, M3Y, TPD05, TPD14, TPD16.
Huepar Laser Adapter
The AT2 adapter can be connected to any device that features a male thread, including Huepar laser levels such as 622CG/R, 621CG/R, 8211G, among others. The AT3 adapter is compatible with devices having 5/8" or 1/4" male thread, supporting models like 603CG/R, 621CG/R, and more.
Huepar Magnetic Bracket
This accessory raises the beam to your desired reference height, featuring TPR soft rubber on all sides for shock resistance. Main products: PV3, PV5, PV7, PV11+, PV15.
Huepar Care
By purchasing this one-year extended warranty, your Laser Level can enjoy a total of 3 years of warranty service.
1. This product (Huepar Care) is a special service product and cannot be returned.
2. Valid for one year starting from the date of purchase.
3. The service includes Free replacement of accessories such as laser windows, chargers, batteries, etc, and other accidental damage.
4. Restricted to huepar.com orders.
5. Huepar official has the final right to interpret this.
Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output
Laser Wavelength: 505-530nm* Screen type: LCD screen with backlight
Horizontal/Vertical Accuracy: ±3mm/10m(±1/9 in.at 33 ft)
Leveling/Compensation Range: ±3°
Working Distance (Line): 20M(60-100 LUX), 40M with Huepar Receiver LR-5RG/LR-6RG
Operating Time: 6.5 hours continual use with all laser beams on
Power Source: Li-ion Battery 11.1V(12.6V Max)2600mAh
Charging Time: About 3.5 hours.
IP Rating: IP54 dust-proof, waterproof and shockproof, reliable and tough
Operation Temperature Range: 14℉ ~ 122℉ (-10℃~ 50℃)
Storage Temperature Range: -4℉ ~ 158℉ (-20℃~ 70℃)
Mount Size: 1/4"-20 & 5/8"-11
Three Speed Adjustment Electric Base
- High speed 240mm/s: suitable for measurement in open areas or environments that require fast scanning, which can improve work efficiency.
- Medium speed 48mm/s: suitable for general measurement and calibration tasks, and can be flexibly used in various working environments.
- Low speed 9.7mm/s: suitable for environments that require precision measurement or alignment work, ensuring high precision and stability of measurement.
Convenient Charging Design
- Design and Charging Ports: The laser level has two charging ports. One is located on the side of the device, and the other is used for charging through a battery.
- Battery Capacity: The level has a 2600mAh battery, allowing for long-term use within a certain range.
- Convenience and Environmental Considerations: Despite requiring battery power, the built-in charging port makes the device both convenient and environmentally friendly.
Infinite Remote Control Tangent
- The portable 2.4g wireless remote control enables users to switch between horizontal and vertical laser lines during work.
- Used for horizontal and vertical positioning on indoor and outdoor walls and floors to ensure construction accuracy.
- Helpful in home decoration tasks like wall tiles, wallpaper, and picture frame installation to maintain levelness.
- The remote control allows users to easily control the W04CG for precise positioning and measurement, making the tool more convenient and efficient.
Long Distance Connection
- Users can remotely operate and control the laser level within a range of up to 50 meters using the app.
- For example, users can adjust the working mode and parameters directly from the mobile app on the construction site, without needing to interact physically with the equipment.
Adjustable Visibility
-
Minimum Brightness: Ideal for dimly lit environments, such as indoor construction sites or nighttime use.
-
Medium Brightness: Suitable for general indoor or semi-bright environments.
- Maximum Brightness: Best for outdoor or strong light environments, like construction sites with direct sunlight.

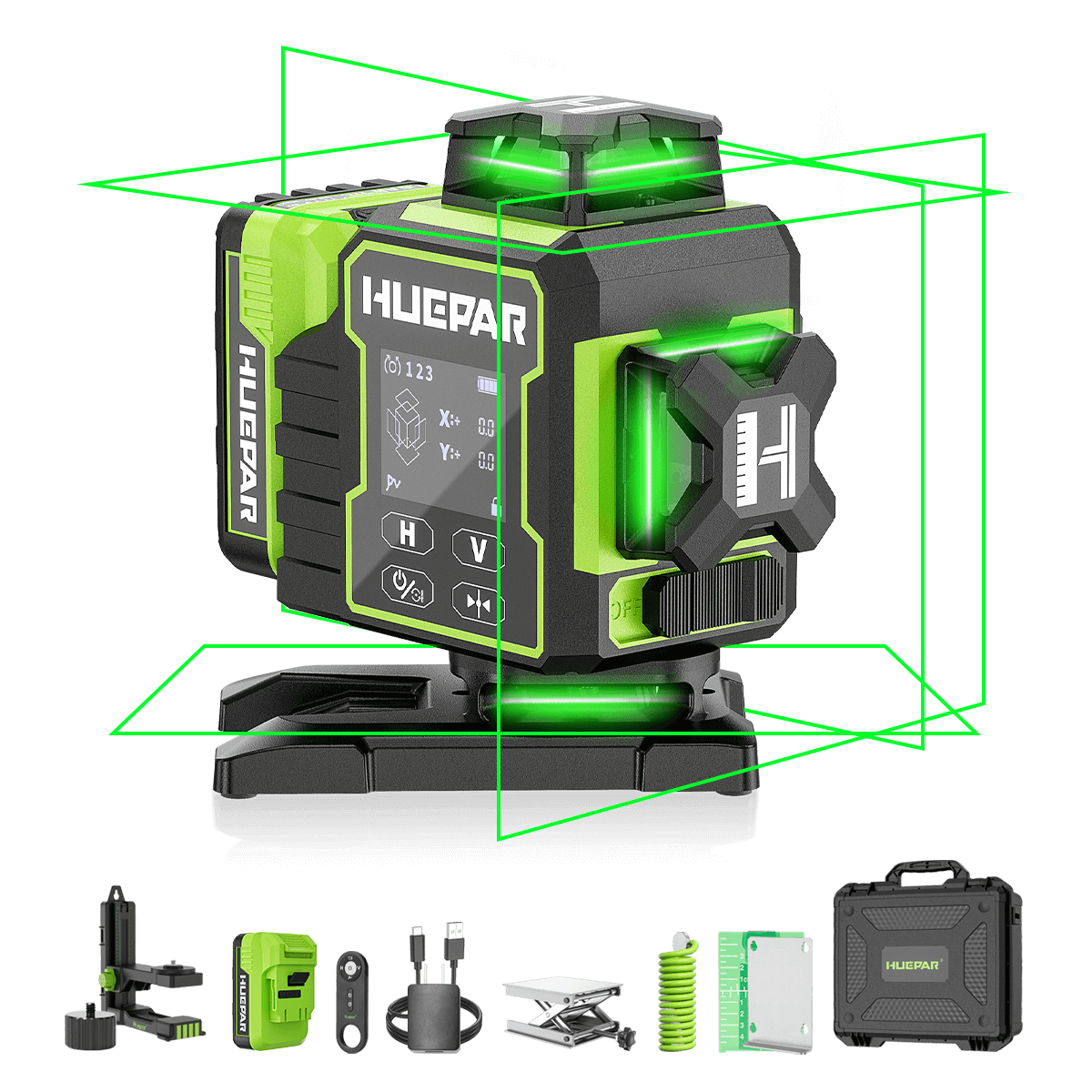

Packing List
1 x Laser Level
1 x Bluetooth Remote Control
1 x Magnetic Bracket
1 x Power Adapter & Type-C cord
1 x Hard Carry Case
1 x Lifting Base
1 x Lase Level User Manual
1 x Steel Sheet
1 x Laser Target Plate
1 x 1/4"-20 to 5/8" Adaptor
Find your perfect laser level
Huepar W04CG Laser Level$545.19 | |
---|---|
Product Info | |
Product type |
4D Laser Levels
|
Endorsed By
High Quality Ensured by Professional Testing
Every product goes through 8 strict inspection processes before it is delivered to you to ensure that you receive products of consistent quality.
