HUEPAR LS41G Laser Level

• MULTI-LINE LASER TOOL WITH 360°FLOOR LASER LINE: Huepar LS41G multi-line laser level delivers 360° floor horizontal line for tiling installation at a 2/5" distance. Providing all-around leveling coverage for layout of tile, stone, brick, carpet and hardwood flooring. Four vertical lines cross at 90° angles in the ceiling, makes user quickly visualize and finish the square layouts on the ceiling. An unique down plumb dot provides additional benefits of plumbing and squaring applications.

• EXTRA BATTERY & TYPE-C CHARGING PORT: Huepar LS41G laser level comes with 2 5200mAh Li-ion batteries for convenient replacement and continuous use. There is a Type-C charging port on the Li-ion battery pack that can be charged separately. 4 battery indicators on the Li-ion battery allow users to know the current battery level and charging status. With Type-C charging port, the batteries can also be charged by phone, laptop, power bank, car charger, etc.

• MICRO-ADJUST BASE & LIFTING BASE: The laser level comes with 1/4"-20 & 5/8"-11 threads to suit for standard tripod or laser mounting pole. Equipped with a metal micro-adjust fine turning pivoting base, the laser dot can go through the 5/8" thread, and the micro rotary knob enables users to make 360° adjustment. With the lifting base, the 360° floor laser can raise from the surface to go over and travel past uneven surfaces or obstructions between 1" and 3.5" height.

• BRIGHTER GREEN LASER & OUTDOOR PULSE MODE: This multi-Line laser level adopts the bright Osram’s green laser unit, which is resistant to temperature changes and has higher stability. At the same power, the green laser is twice bright as the red laser, with a working range up to 98 feet (300LUX) of accuracy within ±1/9 Inch at 33 Feet. The outdoor pulse mode can be activated by pressing the Pulse Mode Button, allowing to extend the laser range up to 197 feet with Huepar Line Laser Detector.

• CONVENIENT AND INTELLIGENT DESIGN: Short press H and V to switch the laser lines, users can select the individual and combined laser lines individually depending different on job site applications. With our smart pendulum system, this laser level tool self-levels and indicates out-of-level condition while pendulum unlocked. Once pendulum locked, it switches to manual mode to lock lines for use at any angle. Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output.

With advanced laser level technology, Huepar is committed itself to providing solutions for a wide variety of applications of greater accuracy and precision.

Huepar LS41G 360° Self-leveling Multi-Line Laser Level Specifications:

• Laser lines: One 360° Floor Horizontal Line&four Vertical Lines&one Green Down Plumb Dot
• Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output
• Laser Wavelength: 505-520nm
• Horizontal/Vertical Accuracy: ±1/9" at 33ft (±3mm/10m)
• Plumb Dot Accuracy: 1/25" at 3.3ft (1mm/1m)
• Leveling/Compensation Range: ±3°
• Working Distance (Line): 100Ft, Up to 200Ft with Huepar Laser Receiver
• Operating Time: 5 hours continual use with all laser beams on
• Power Source: Two 3.7V / 5200mAh Li-ion Battery
• Mount Size: 1/4"-20 and 5/8"-11
• IP Rating: IP54 dust-proof, waterproof and shockproof
• Operation Temperature Range: -10℃ ~ 50℃(14℉ ~ 122℉)
• WARNING: Avoid direct exposure of the laser beam to the eyes.

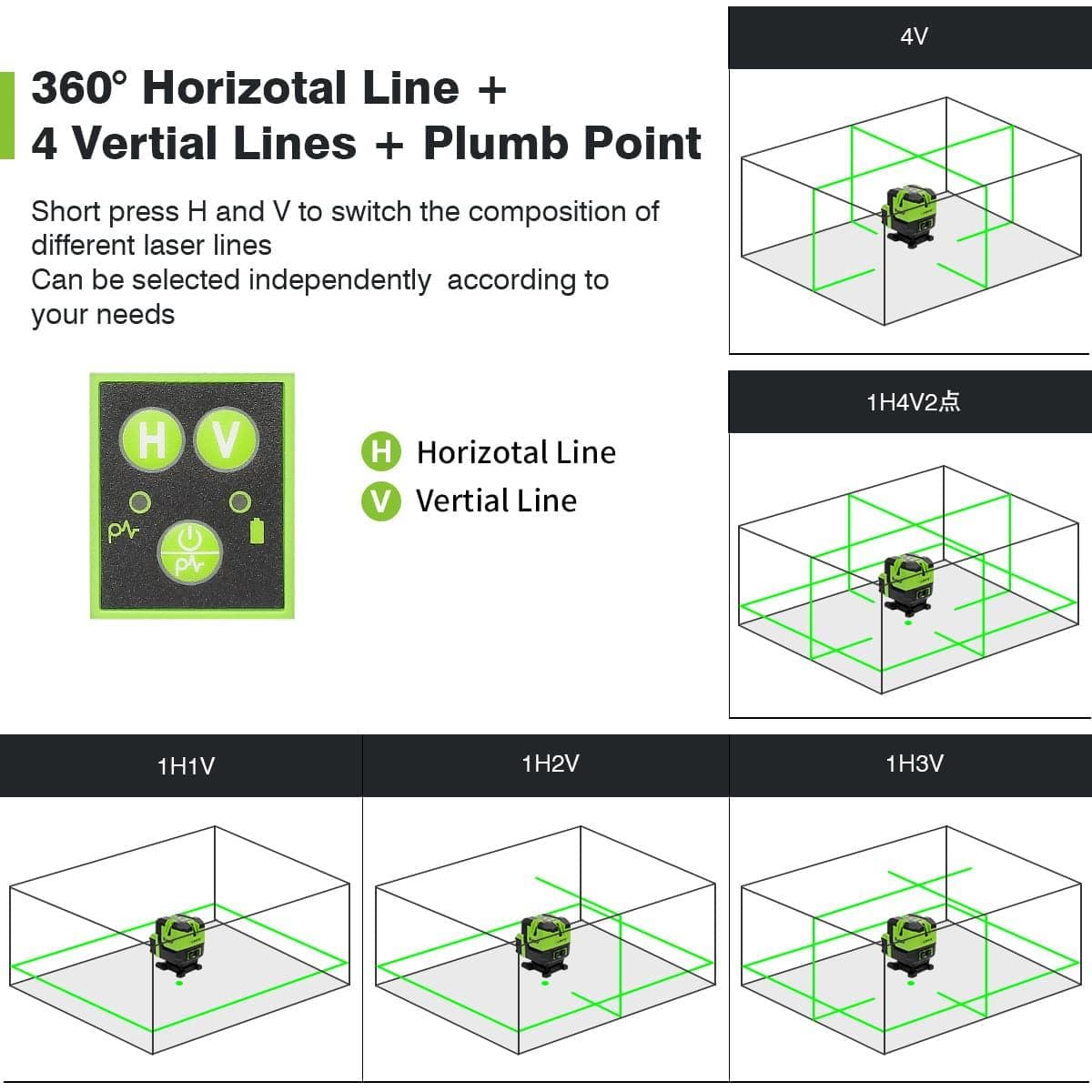

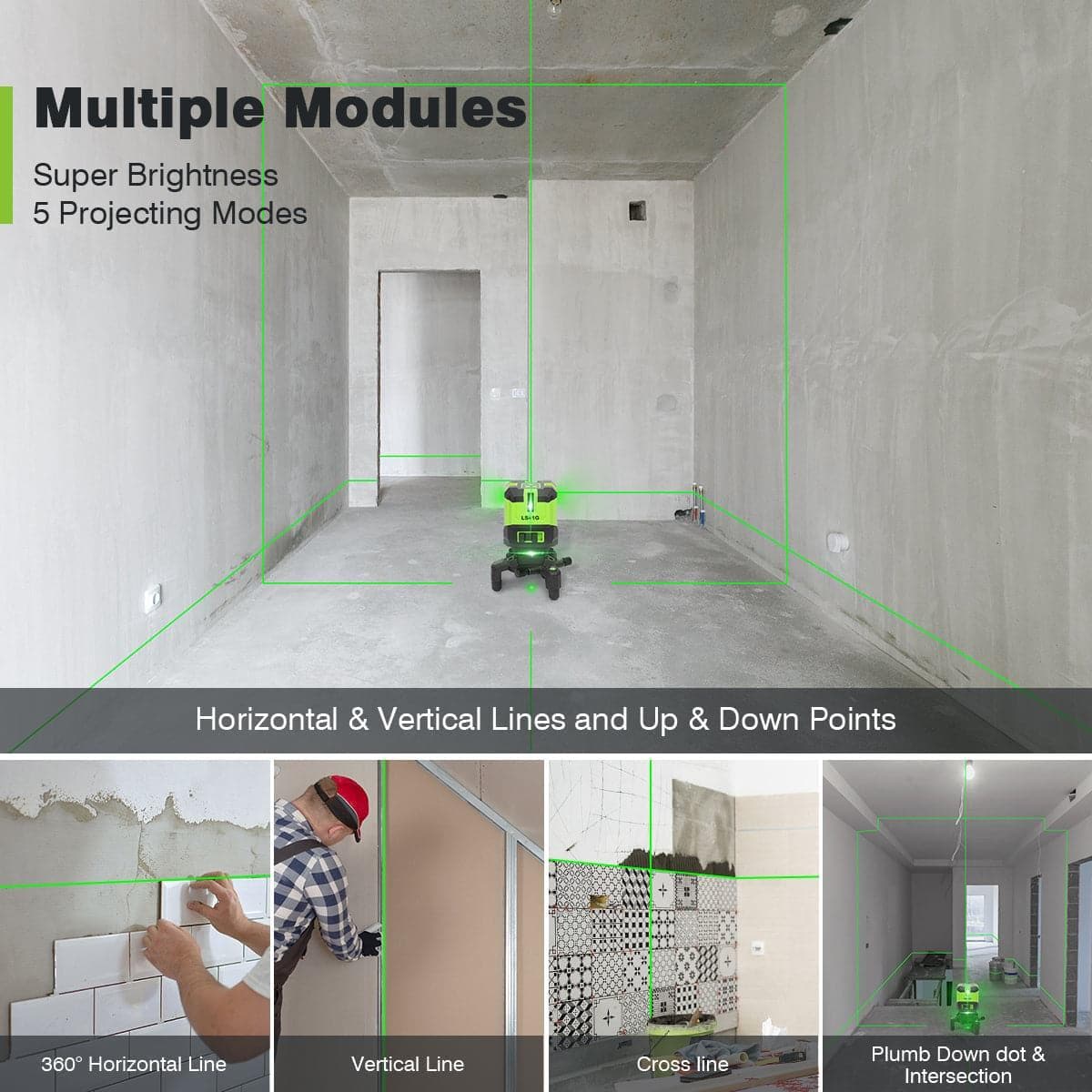

Multiple Line Switching Functions

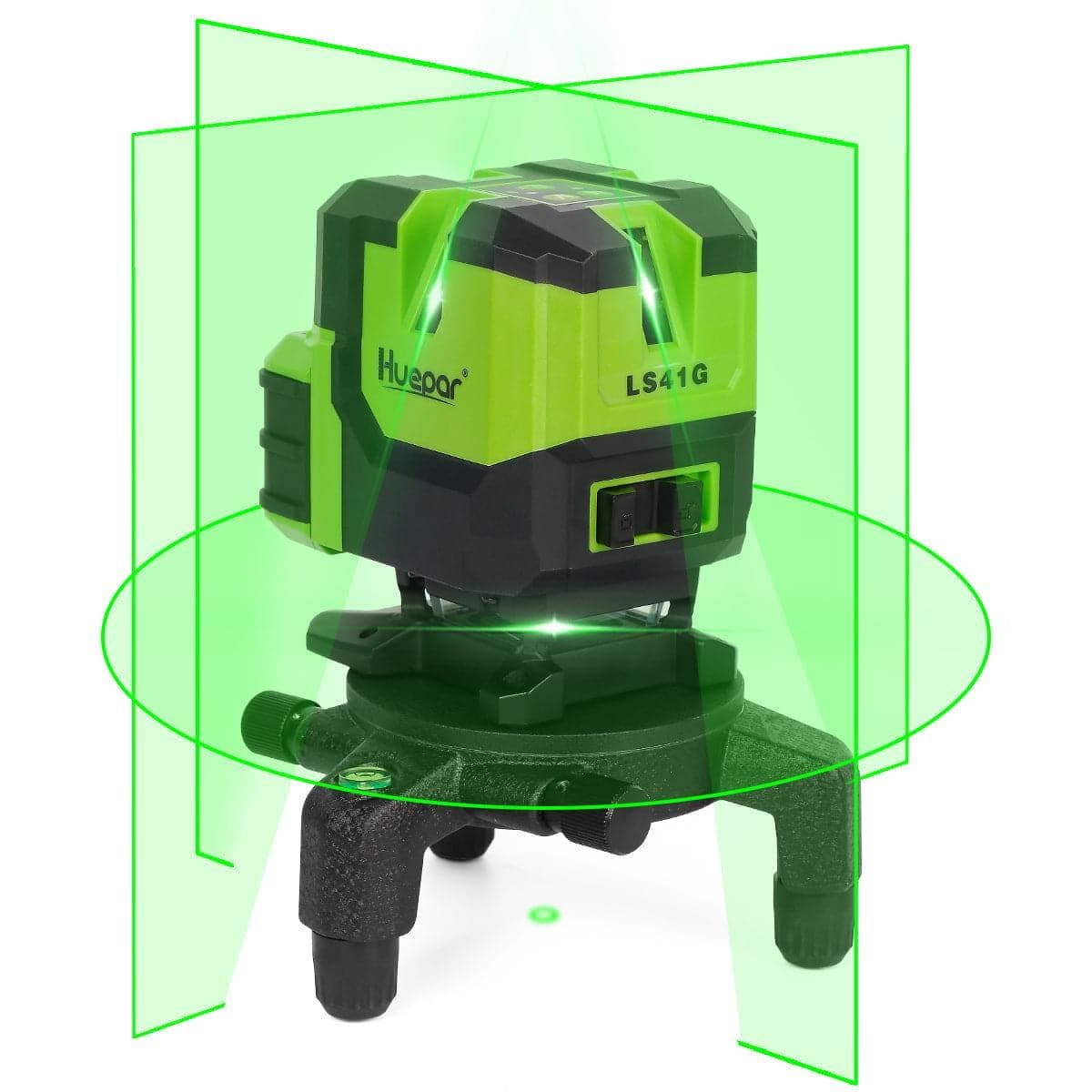

Huepar LS41G multi-line laser level delivers 360° floor horizontal line, four vertical lines plus plumb down dot for leveling, aligning, tiling, plumb and square applications.
Short press H and V to switch the laser lines, users can select the individual and combined laser lines individually depending on different job-site applications.

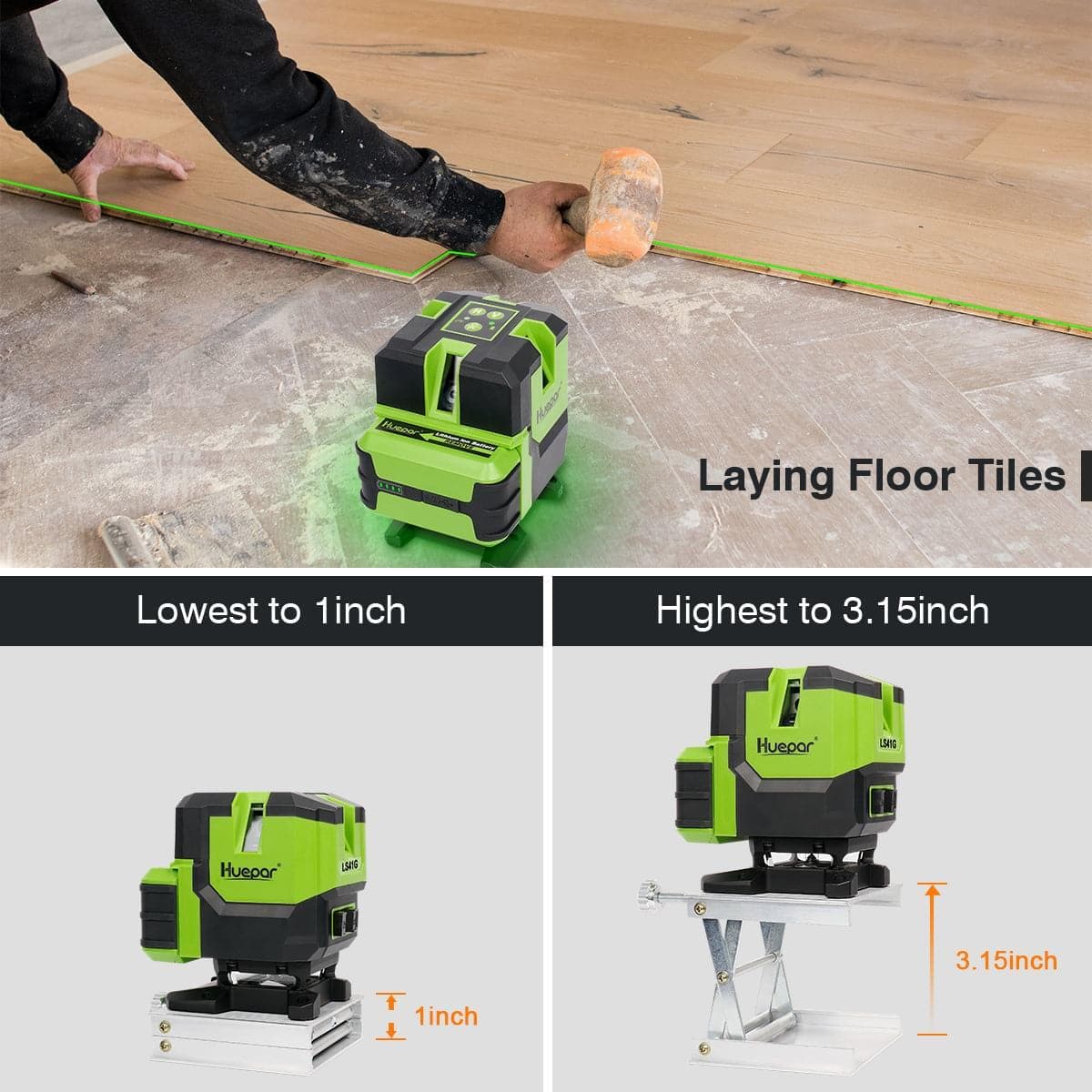

360° Horizontal Floor Laser & Lifting Base

This line laser tool generates one 360° horizontal tiling laser on the floor for tiling installation at a 2/5" distance.
The 360° floor horizontal line providing all-around leveling coverage for layout of tile, stone, brick, carpet and hardwood flooring.
With the lifting base, the laser line can raise from the surface to go over and travel past uneven surfaces or obstructions between 1 inch and 3.5 inch height.

Metal Micro-Adjustable Rotating Base

Equipped with a metal micro-adjustable fine turning rotating base, the plumb down laser dot can go through the 5/8" thread, and the two micro rotary knob enables users to make 360° adjustment.
Users can adjust the height by rotate the three legs of the base even on a tilt surface.
The 5/8" threaded mount makes it possible to be attached to a tripod or other tool for use.

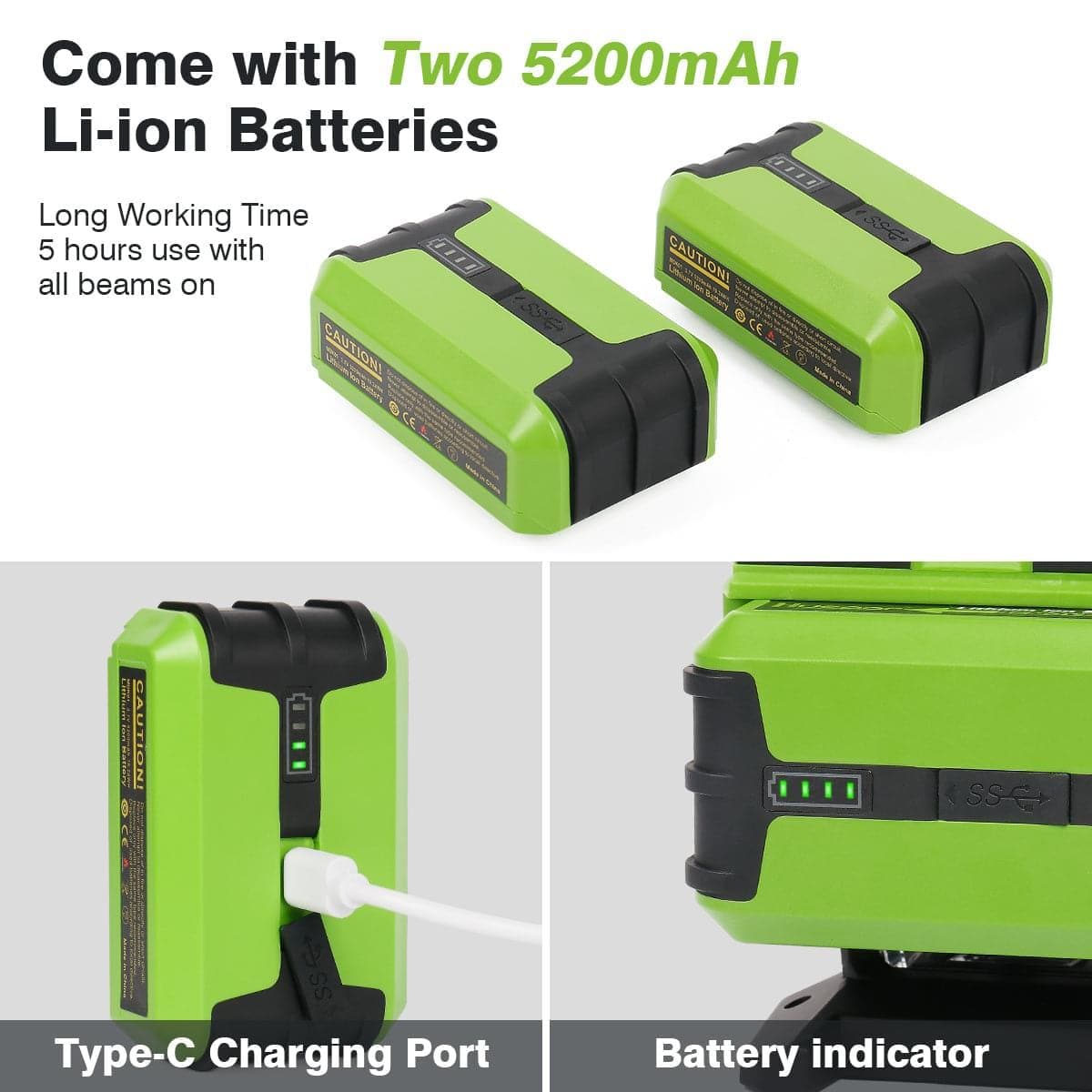

Two 5200mAh Li-ion Batteries & Type-C Charging Port

This laser tool utilizes the 3.7V / 5200mAh Li-ion battery. An extra battery pack is included in the package for backup.
There is a Type-C charging port on the Li-ion battery that can be charged separately.
4 battery indicators on the Li-ion battery pack allow users to know current battery level and charging status.
With Type-C charging port, the laser level can also be charged by phone, laptop, power bank, car charger, etc.

Pulse Mode

Turn ON pulse mode: After power on, short press the power button to turn on the pulse mode. The indicator will light up in blue.
Pulse mode extends the working range up to 200Ft. in brighter working conditions when using with Huepar Line Laser Receiver.
Keep the pulse mode on when using with a receiver.
It is compatible with Huepar LR-6RG&LR-5RG Line Laser Receiver only.

Self-leveling Mode & Manual Mode

Self-leveling Mode:

When the laser tool is switched to the unlocked position, the self-leveling mode is enabled.
The laser beam will flash and the laser tool will beep as well when the tool is beyond self-leveling range ± 3°.

Manual / Tilt Mode:

When the pendulum locked, the laser tool can be placed for alignment at any angle.
The laser beam will blink every 3-5 seconds to remind you that it's not self-leveling now

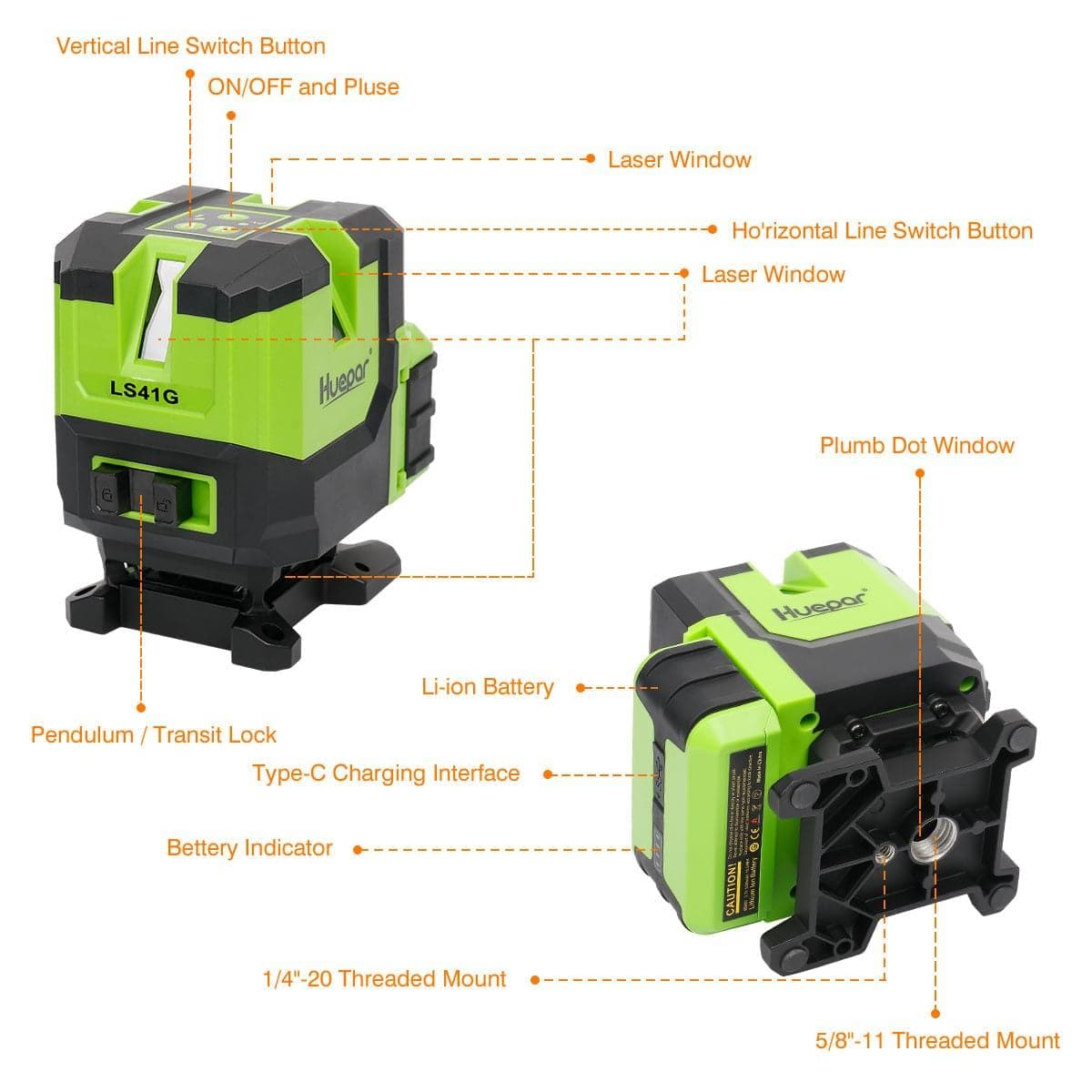

Easy to Use

Two Mount Sizes: 1/4"-20 and 5/8"-11 mounting threads for temporarily fastening in place or being fixed on tripod.
Green Target Plate: Green Target Plate: Increases the visibility of the laser beam or laser point.
Lifting Base & 360° Rotating Base help users work more easily at job-sites.

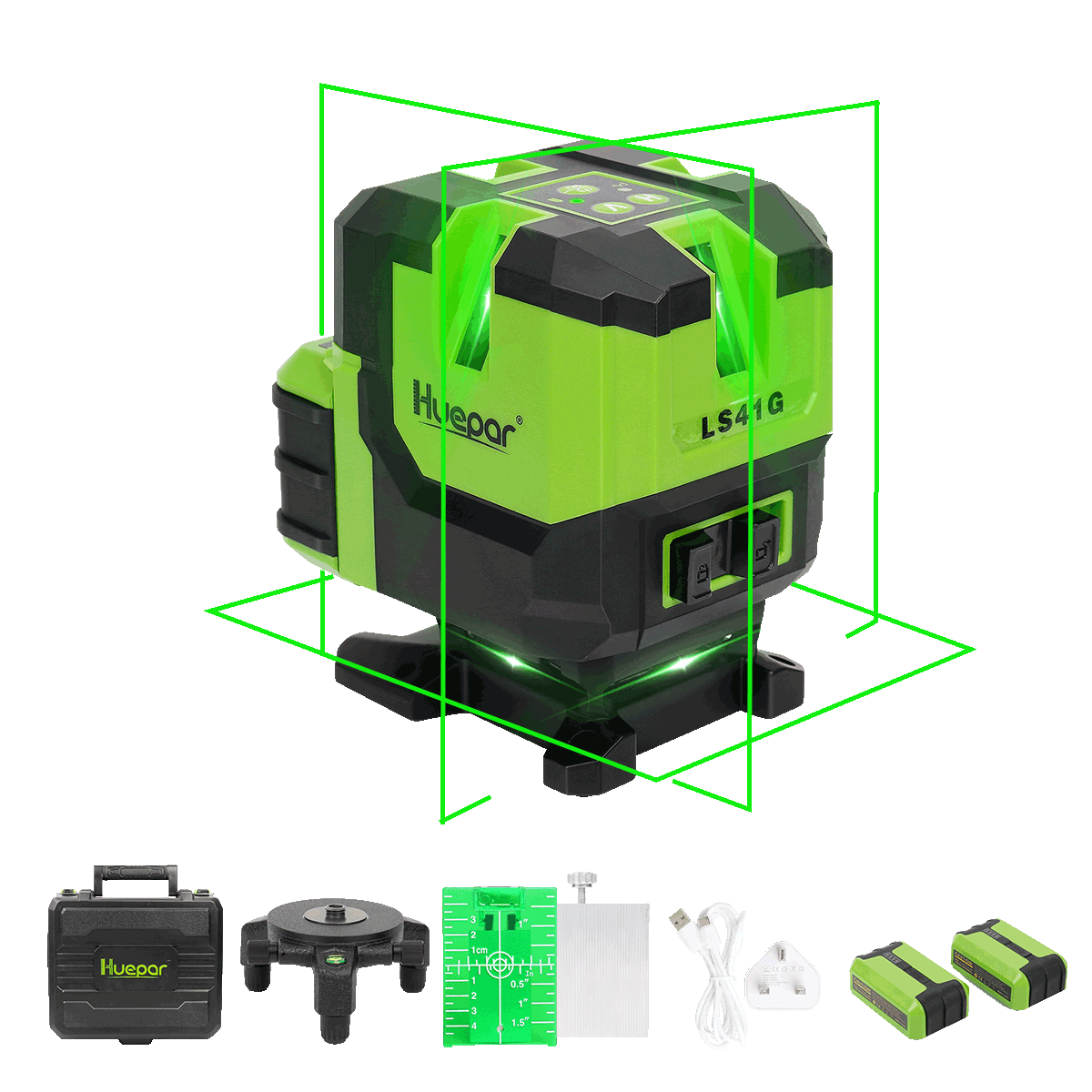

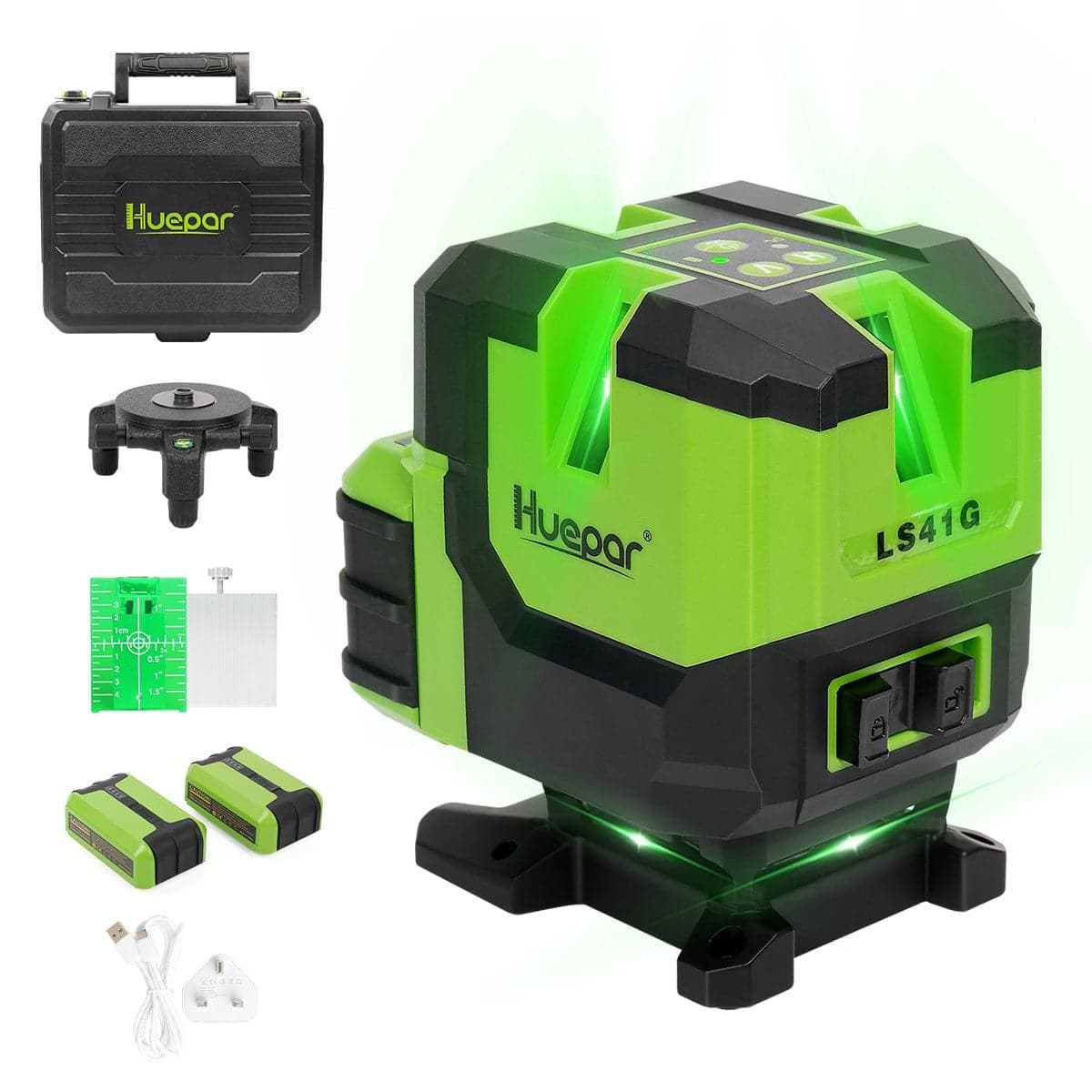

Package Contents
