| Part Number | 603CG-BT_Laser Level-New |
|---|---|
| Item Weight | 3.6 pounds |
| Package Dimensions | 80 x 8.4 x 6.6 inches |
| Style | 603CG-BT 3x360 with Bluetooth |
| Material | ABS+TPR |
| Installation Method | self leveling and manual mode |
| Number Of Pieces | 1 |
| Performance Description | Bluetooth/Self-leveling time within 3s |
| Measurement Accuracy | +/-1/9" at 33Ft |
| Laser Beam Color | Green beam |
| Plug Profile | 1/4"-20 and 5/8"-11 |
| Switch Style | Slide switch |
| Special Features |
Bluetooth Self-Leveling Cross-line 360 Degree Manual mode Pulse mode green-line |
| Usage | Commercial/Residential/Indoor/Outdoor/Construction/DIY/Picture hanging/Drywall |
| Included Components |
(1) Rechargeable Lithium Battery (1) Power Adapter (4) AA (LR6) Batteries (1) AA Battery Holder (1) Magnetic Pivoting Base (1) Laser Target Plate (1) User manual (1) Portable Bag |
| Batteries Required? | No |
Free Shipping
2-Year Warranty
14-Day Returns
Huepar 603CG-BT Laser Level
Regular price
руб15.298,86
Regular price
руб15.298,86
Sale price
руб21.418,81
Unit price
per
Huepar 603CG-BT Laser Level
Huepar 603CG-BT Laser Level
Tax included, shipping calculated at checkout.
Regular price
руб15.298,86
Regular price
руб15.298,86
Sale price
руб21.418,81
Unit price
per
Select Option
Add Top Accessories
Huepar LR5RG - Laser Detector/Line Laser Receiver
руб4.792,94
руб6.118,93
Huepar TPD14 - 56 inch/143cm Tripod Adjustable
руб5.608,94
руб6.118,93
Huepar LP36 - 3.7m/12ft Laser Telescoping Pole
руб8.770,91
руб9.595,06
Expand Extended Warranty?
Out of stock
Couldn't load pickup availability
Pay with Ease
Trusted Delivery with DHL/UPS/FedEx/USPS
-
Ordered
- - -
Order Ready
- - -
Delivered
Accessories Guides
Huepar Line Laser Receiver
The LR5RG / LR6RG is a laser detector compatible with most Huepar laser levels on Pulse Mode, detecting red or green lasers up to 200 feet away. Main products include LR5RG, LR6RG, LR8RG.
Huepar Tripods
Made of aluminum alloy for stable support with a maximum load capacity of 10kg/22lb. Compatible with most measuring tools. Main products: LP36, M3Y, TPD05, TPD14, TPD16.
Huepar Laser Adapter
The AT2 adapter can be connected to any device that features a male thread, including Huepar laser levels such as 622CG/R, 621CG/R, 8211G, among others. The AT3 adapter is compatible with devices having 5/8" or 1/4" male thread, supporting models like 603CG/R, 621CG/R, and more.
Huepar Magnetic Bracket
This accessory raises the beam to your desired reference height, featuring TPR soft rubber on all sides for shock resistance. Main products: PV3, PV5, PV7, PV11+, PV15.
Huepar Care
By purchasing this one-year extended warranty, your Laser Level can enjoy a total of 3 years of warranty service.
Terms of use:
1. This product (Huepar Care) is a special service product and cannot be returned.
2. Valid for one year starting from the date of purchase.
3. The service includes Free replacement of accessories such as laser windows, chargers, batteries, etc, and other accidental damage.
4. Restricted to huepar.com orders.
5. Huepar official has the final right to interpret this.
1. This product (Huepar Care) is a special service product and cannot be returned.
2. Valid for one year starting from the date of purchase.
3. The service includes Free replacement of accessories such as laser windows, chargers, batteries, etc, and other accidental damage.
4. Restricted to huepar.com orders.
5. Huepar official has the final right to interpret this.
Overview
603CG-BT 3D Green Laser Level with Bluetooth Specifications:
- Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output
- Laser Wavelength: 505-520nm
- Horizontal/Vertical Accuracy: ±1/9 inch at 33Ft.
- Leveling/Compensation Range: ±4°
- Working Distance (Line): 130Ft (100 LUX), 200Ft. with Huepar Receiver LR-5RG/LR-6RG
- Operating Time with Lithium Battery: 7 hours with all laser beams on
- Operating Time with AA Batteries: 2 hours with all laser beams on
- Power Source: Li-ion battery&4×AA (LR6) batteries
- IP Rating: IP54
- Operation Temperature Range: 14℉ ~ 113℉ (-10℃~ 45℃)
- Mount Size: 1/4"-20 and 5/8"-11
Note: WARNING - Avoid direct exposure of the laser beam to the eyes.

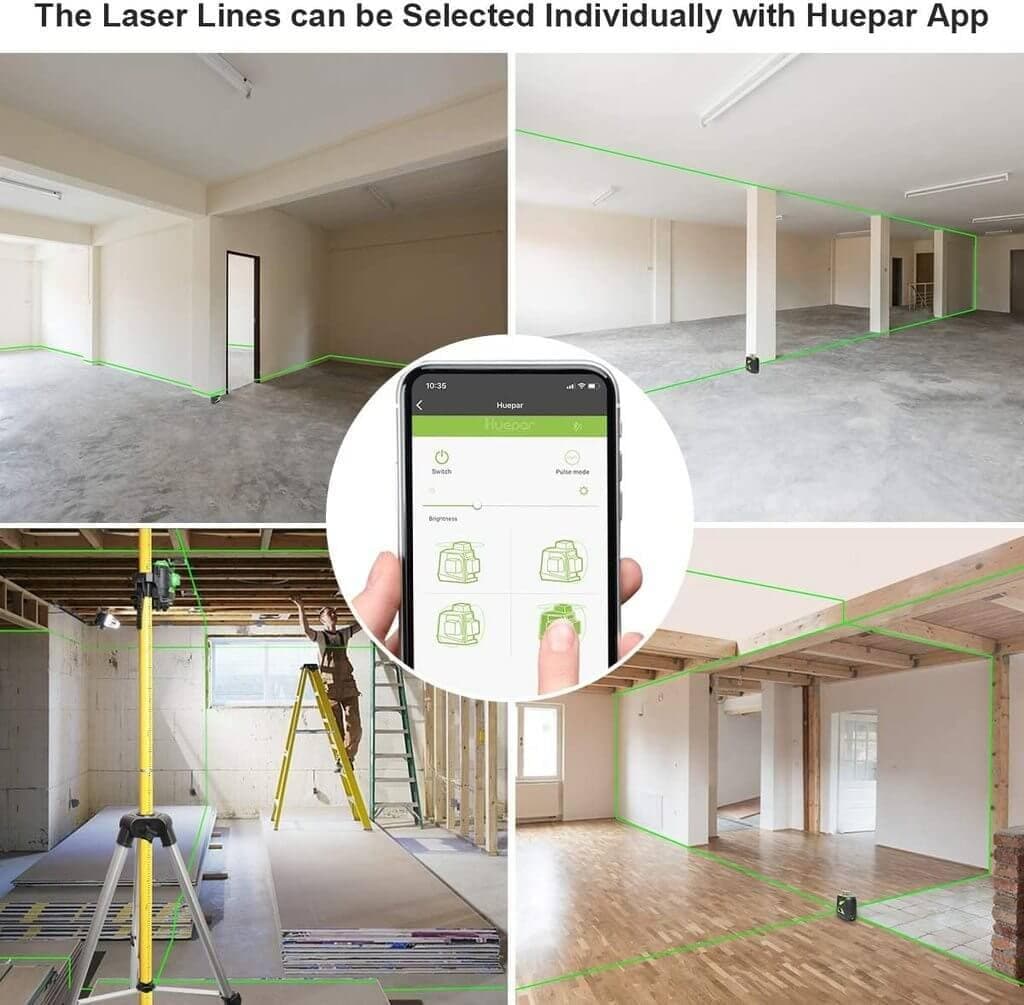

Line Switching
- Short press "LASER" button to switch the laser lines.
- The laser lines can be selected separately according to job requirements.
- The laser line(s) can be temporarily turned OFF by phone when you need to leave for a while.

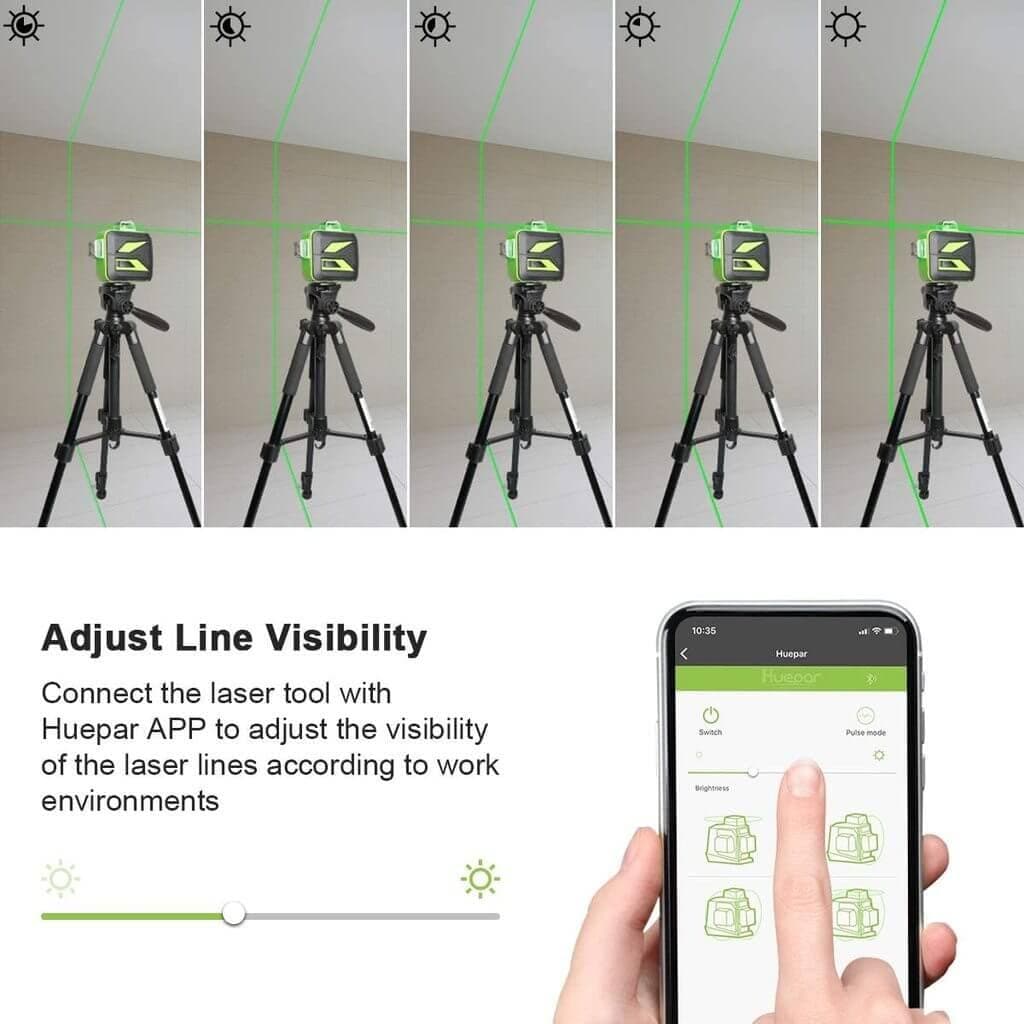

Visibility Adjustment
- The visibility of the laser beam can be adjusted by connecting with the Huepar APP.
- Slide the brightness bar to the brightness you need.
- The visibility adjustment function is not applicable after the pulse mode turned on.
Pulse Mode can be Switched ON/OFF with Huepar APP
Pulse Mode
-
Short press "PULSE" button to switch ON/OFF the pulse mode. When connecting with Huepar APP, the pulse mode can be switched ON/OFF via APP.
-
Pulse mode extends the working range up to 200Ft in brighter working conditions when using with Huepar Line Laser Receiver.
-
It is compatible with Huepar LR-6RG / LR-5RG Laser Detector only.
Smart Pendulum
-
Self-leveling Mode: When the laser tool is switched to the unlocked position, self-leveling mode is enabled. The laser beam will blink continuously to indicate out-of-level condition up to ±4°.
-
Connecting with Huepar APP, a level icon will be displayed to remind user when it is beyond the self-leveling range.
-
Manual Mode: When the pendulum lock is in locked position, manual mode locks laser lines for use at any angle. The laser beam will blink every 3-5 seconds to remind it's not self-leveling now.
-
When connecting with Huepar APP, a lock icon will be displayed to remind user it is in manual mode now.
-
Note: Due to the design of the pendulum locking device, the laser tool can not be controlled to be turned on/off by Bluetooth,

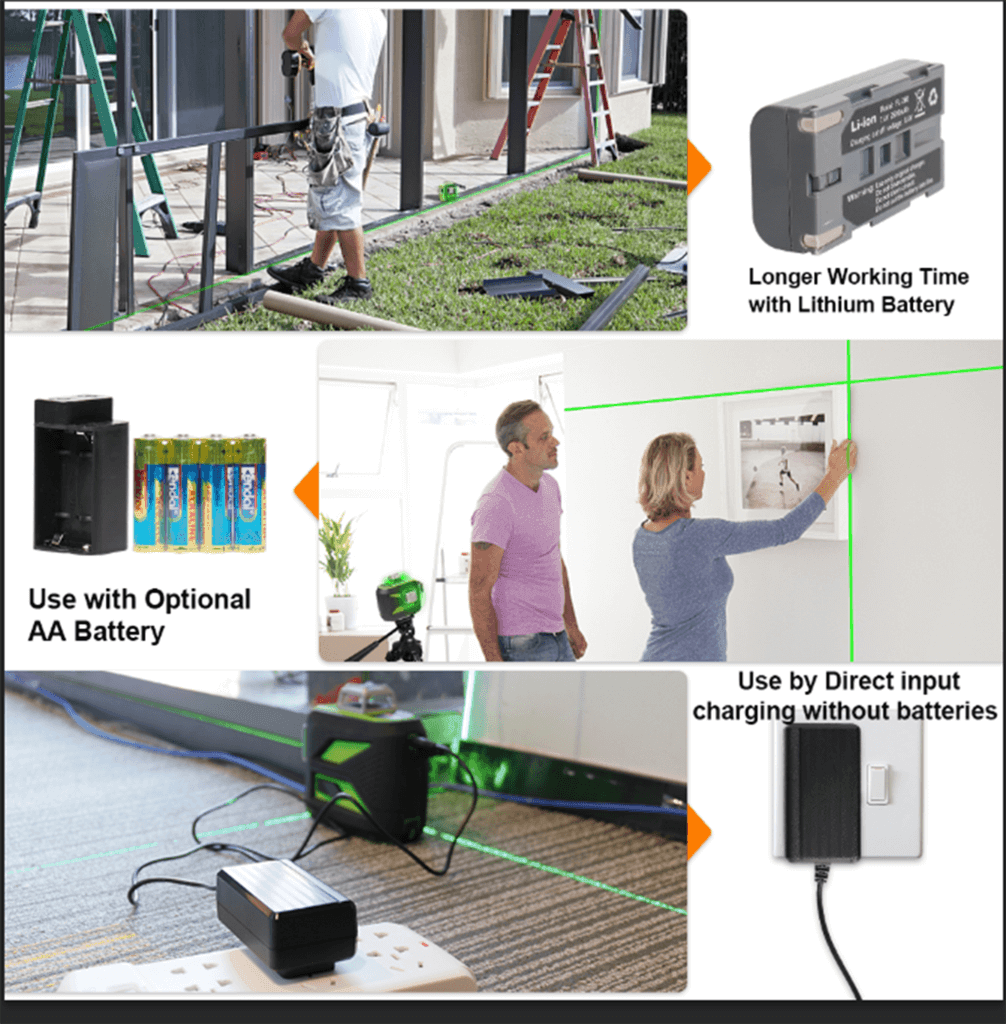

Triple Power Supply
-
This laser tool utilizes the included large capacity lithium battery which is compatible with Samsung SB-L110 battery.
-
This laser tool comes with an holder for installing AA battery for using the tool.
-
Direct input charging: This laser tool can be used at job site with direct input charging even if take out the battery.
-
Charging protection help prevent the tool from overcharge.

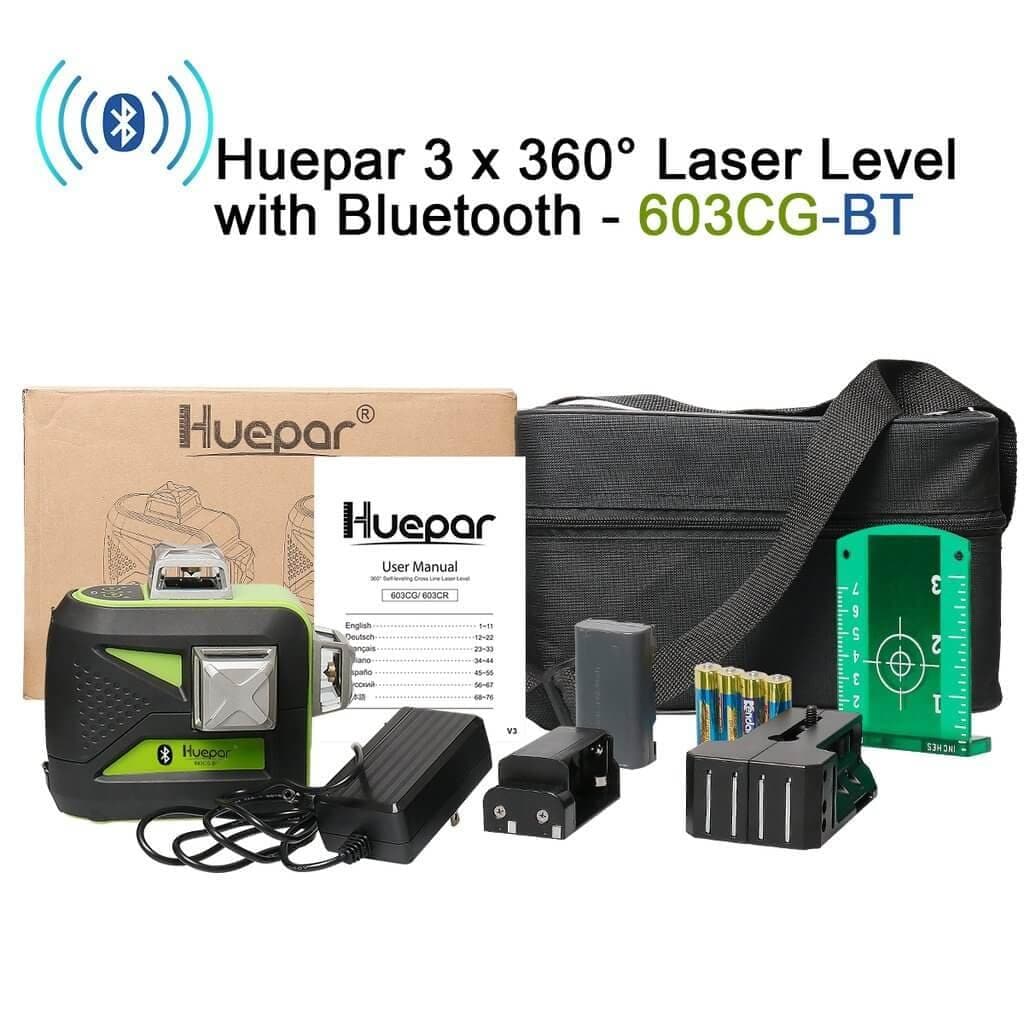

Package Contents:
- 1 x Huepar 603CG-BT 3D Cross Line Laser Level
- 1 x Rechargeable Lithium Battery
- 1 x Lithium Battery Charger
- 1 x Power Adapter
- 4 x AA (LR6) Batteries & 1 x AA Battery Holder
- 1 x Magnetic Pivoting Base
- 1 x Laser Target Plate
- 1 x Lase Level User Manual
- 1 x Huepar Bluetooth User Manual
- 1 x Portable Bag
